13MP HD Camera Module for Video Conferencing
Description:

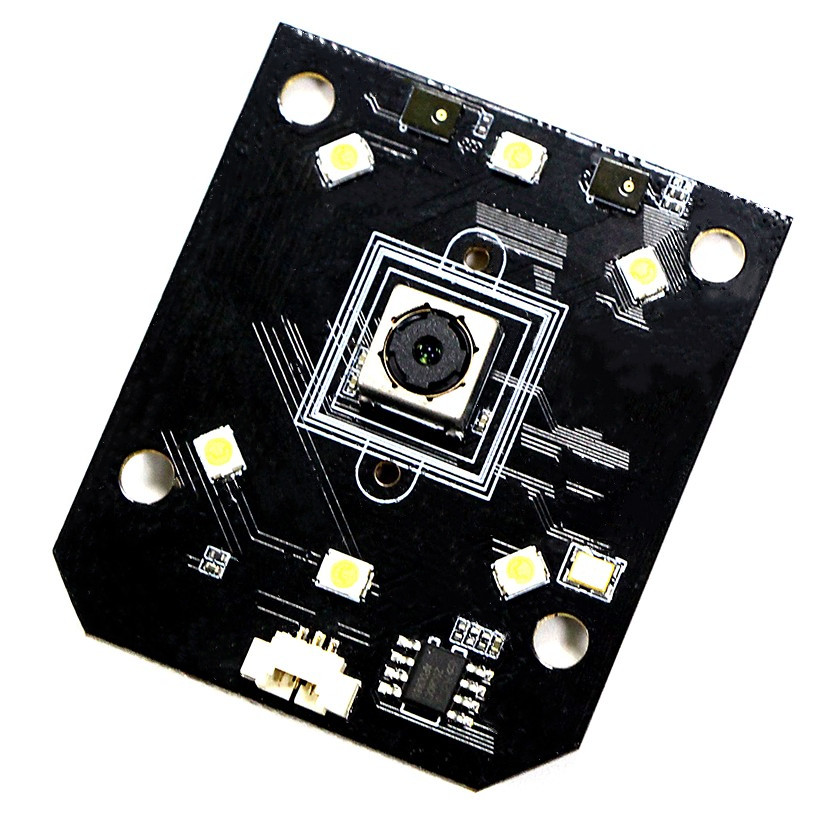

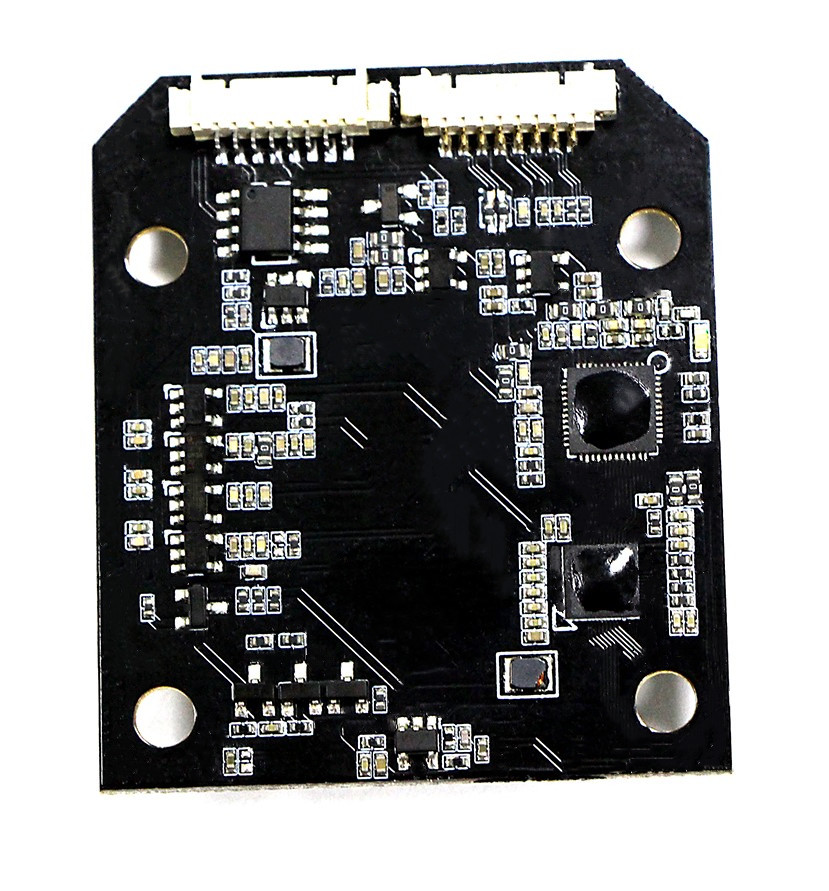

003-0842 13MP(4192*3104P@30fps) USB camera module, 4K of resolution show you a ultra clear image. Widely used in document scanner, video conference, smart e-blackboard, LED display and beauty equipment etc.
Features:
13MP Ultra HD Resolution:
4192*3104P high resolution, deliver sharp images effectively. High definition with low color reproduction deviation.
AF Auto Focusing:
Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera. It can quickly and automatically refocus when an object changes position.
Plug & Play:
Drive-free USB camera module is very easy to use, just need to plug the camera to USB port, no need to download or install any drivers. High speed USB 2.0 USB camera also support OTG protocol(UVC).
Wide Compatibility:
13MP HD USB camera compatible with Windows Win XP/Vista/Win7/Win8 /Win10, Linux with UVC
SPECS:
Camera
Sensor Size: 1/3.06”
Resolution: 4192*3104
Output: MJPC/YUV
Frame Rate: 30fps/7fps
Lens
FOV: D=76°
TTL: 4.88mm
Construction: 5P
Mount: M5*P0.5mm
Power
Power Supply: DC 5V
Working Current: MAX 500mA
Physical
Operating Temp.: -4°F~158°F (-20°C~+70°C).
Dimension: 50*43mm
Applications
Document Scanner
Video Conference
Smart E-Blackboard
LED Display
Beauty Equipment etc.
