16MP S5K3P3 ISP Smartphone M12 Fixed Focus Dvp Camera Module
FF M12 Fixed Focus Wide Angle Lens 16MP Mini S5K3P3 Sensor ISP Smartphone 16Megapixel MIPI Dvp Camera Module
Product Description
The HAMPO-J7MF-S5K3P3 V1.0 is a highly integrated 16M pixel camera chip camera module that includes a CMOS image sensor (CIS) , image correction functionality and serial transmission using 4-lane MIPI. It is designed for fast yet low power operation, delivering full resolution capture at 30 frames per second (fps) and full field of view (16:9) FHD video at 60fps. The S5K3P3SQ camera module supports Phase Detection Auto Focus (PD AF) mechanism allowing efficient Auto Focus in the system.
Specification
|

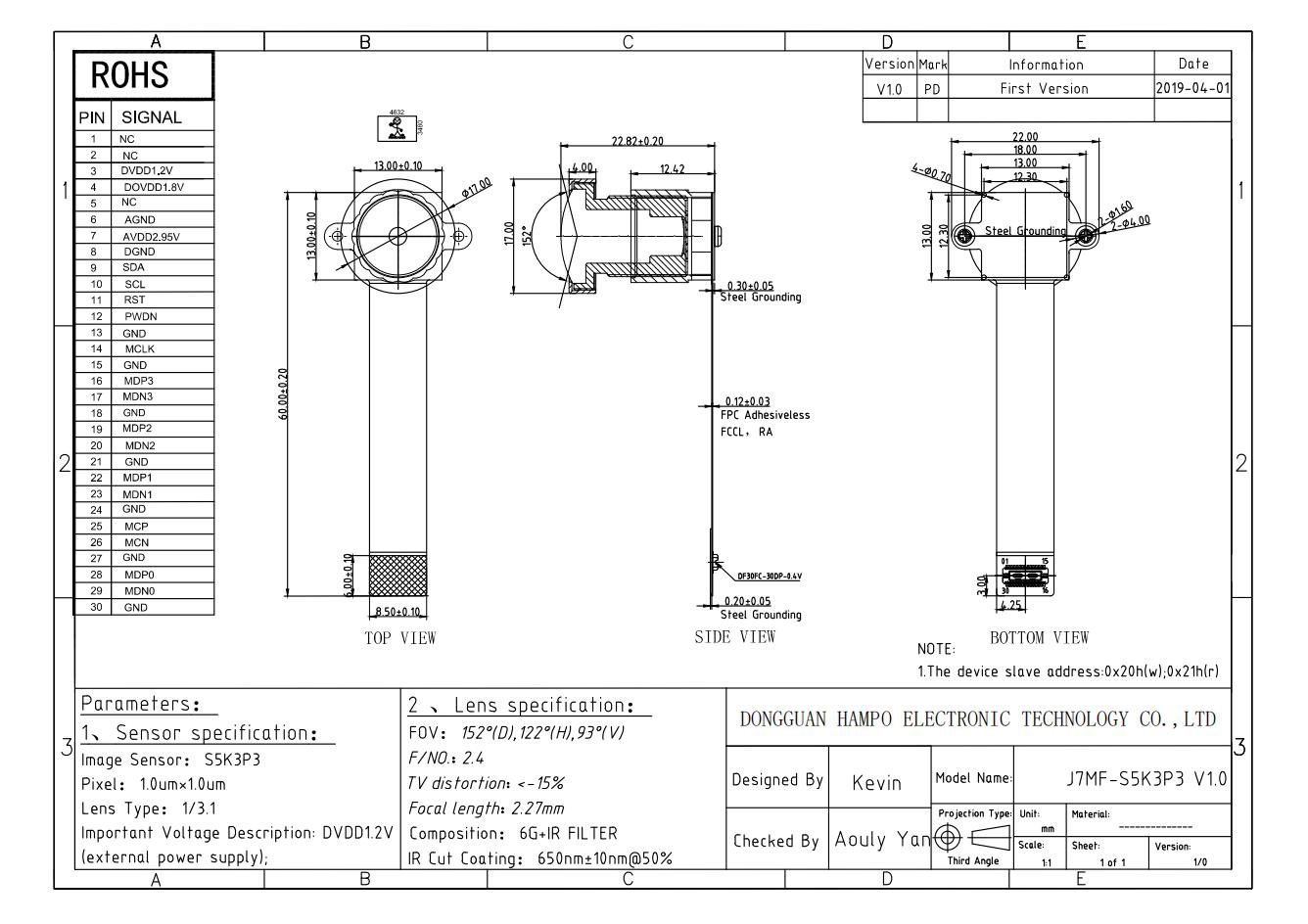

Camera Module No.
|
HAMPO-J7MF-S5K3P3 V1.0
|
|
Resolution
|
16MP
|
|
Image Sensor
|
S5K3P3
|
|
Sensor Size
|
1/3.1"
|
|
Pixel Size
|
1.00 um x 1.00 um
|
|
EFL
|
2.27mm
|
|
F/No.
|
2.4
|
|
Pixel
|
4632 x 3480
|
|
View Angle
|
152.0°(DFOV) 122.0°(HFOV) 93.0°(VFOV)
|
|
Lens Dimensions
|
13.00 x 13.00 x 22.82 mm
|
|
Module Size
|
60.00 x 22.00 mm
|
|
Focusing
|
Fixed Focus
|
|
Infterface
|
MIPI
|
|
Lens Type
|
650nm IR Cut
|
|
Operating Temperature
|
-20°C to +70°C
|
Key Features
16Mp sensor with 1/3.1" optics
Pixel size: 1.0um
Effective resolution: 4632 (H) 3480 (V)
Electronic rolling shutter and global reset
Support digital video stabilization margins in main view modes
Frame rate:
Capture: 16M 30 fps
FHD video: 4M(16:9) 60 fps
HD video: 1.78M (16:9) 120 fps
High speed: WVGA 120 fps
High speed: VGA (4:3) 120 fps
Phase Detection Auto Focus (PD AF) support
Interfaces:
Fine interface frequency control using additional dedicated PLL for EMI avoidance and integration
flexibility.
MIPI CSI2 - four lanes (1.5 Gbps per lane)
Output formats: RAW8 (using DPCM/PCM compression), RAW10
Control interface:
I2C interface
- Two-wire serial communication circuit up to 400 kHz.
Xenon/LED flash
Mechanical shutter
32Kbit on-chip OTP memory to support defect corrections and chip ID.
Analog gain x16
Vertical and horizontal flip mode
Continuous frame capture mode
2/2, 3/3, 4/4, 6/6 - average/average-sub-sampling readout
Pixel elimination readout function
Bayer down scaler function for ratios of - x1.5, x2, x2.5, x3, …, x8 and x1.25
Bad pixel correction
On-chip temperature sensor
Built-in test pattern generation
Supply voltage: 2.95 V for analog and 2.8 V or 1.8 V for I/O, 1.2 V for digital core supply
Operating temperature: –30 ℃ to +70 ℃
Pixel size: 1.0um
Effective resolution: 4632 (H) 3480 (V)
Electronic rolling shutter and global reset
Support digital video stabilization margins in main view modes
Frame rate:
Capture: 16M 30 fps
FHD video: 4M(16:9) 60 fps
HD video: 1.78M (16:9) 120 fps
High speed: WVGA 120 fps
High speed: VGA (4:3) 120 fps
Phase Detection Auto Focus (PD AF) support
Interfaces:
Fine interface frequency control using additional dedicated PLL for EMI avoidance and integration
flexibility.
MIPI CSI2 - four lanes (1.5 Gbps per lane)
Output formats: RAW8 (using DPCM/PCM compression), RAW10
Control interface:
I2C interface
- Two-wire serial communication circuit up to 400 kHz.
Xenon/LED flash
Mechanical shutter
32Kbit on-chip OTP memory to support defect corrections and chip ID.
Analog gain x16
Vertical and horizontal flip mode
Continuous frame capture mode
2/2, 3/3, 4/4, 6/6 - average/average-sub-sampling readout
Pixel elimination readout function
Bayer down scaler function for ratios of - x1.5, x2, x2.5, x3, …, x8 and x1.25
Bad pixel correction
On-chip temperature sensor
Built-in test pattern generation
Supply voltage: 2.95 V for analog and 2.8 V or 1.8 V for I/O, 1.2 V for digital core supply
Operating temperature: –30 ℃ to +70 ℃
