20MP IMX376 High Resolution MIPI Interface AF Camera Module
Factory Customized Mini 20MP Sony IMX376 Cmos Sensor High Resolution MIPI Interface Auto Focus Mipi Camera Module
Product Description
HAMPO-D3MA-IMX376 is a diagonal 6.475 mm (Type 1/2.78) 20 Mega-pixel CMOS active pixel type Mipi camera module with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure. R, G, and B pigment primary color mosaic filter is employed.
It operates with four power supply: analog 2.8 V, 1.8V, digital 1.05 V and 1.8 V for input/output interface and achieves low power consumption. It is optionally operational with conventional three power supplies by using an analog power supply voltage of 2.8V.
It operates with four power supply: analog 2.8 V, 1.8V, digital 1.05 V and 1.8 V for input/output interface and achieves low power consumption. It is optionally operational with conventional three power supplies by using an analog power supply voltage of 2.8V.
Specification
|
Camera Module No.
|
HAMPO-D3MA-IMX376 V1.0
|
|
Resolution
|
20MP
|
|
Image Sensor
|
IMX376
|
|
Sensor Size
|
1/2.78"
|
|
Pixel Size
|
1.00 um x 1.00 um
|
|
EFL
|
4.07 mm
|
|
F/No.
|
1.75
|
|
Pixel
|
5216 x 3896
|
|
View Angle
|
76.9°(DFOV) 64.4°(HFOV) 50.7°(VFOV)
|
|

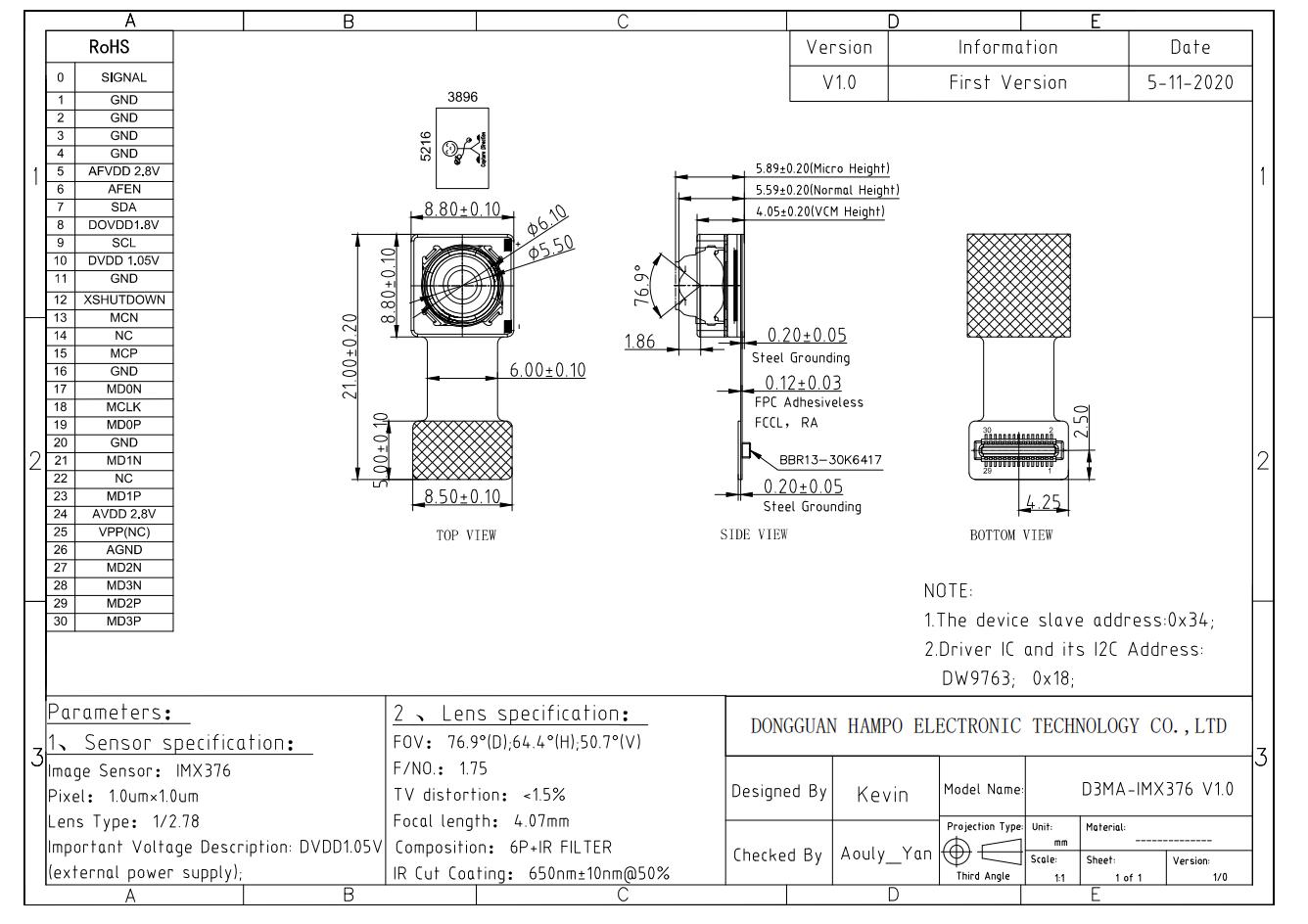

Lens Dimensions
|
8.80 x 8.80 x 5.89 mm
|
|
Module Size
|
21.00 x 8.80 mm
|
|
Focusing
|
Auto Focus
|
|
Resolution
|
20MP
|
|
Interface
|
MIPI
|
|
Auto Focus VCM Driver IC
|
DW9763
|
|
Lens Type
|
650nm IR Cut
|
|
Operating Temperature
|
-20°C to +60°C
|
Key Features
◆High Frame Rate 30fps@Full resolution / 120fps@2x2 Adjacent Pixel Binning (4:3) / 150fps@2x2 Adjacent Pixel
Binning (16:9)
◆Electronic Image Stabilization (EIS)
◆High signal to noise ratio(SNR)
◆Dual sensor synchronization operation
◆Built-in 2D Dynamic Defect Pixel Correction
◆Lens Shading Correction (LSC)
◆Built-in temperature sensor
◆Output video format of RAW10/8, COMP8
◆Pixel binning readout function
◆Two PLLs for independent clock generation for pixel control and data output interface
◆CSI-2 serial data output (MIPI 2lane/4lane, Max. 2.3Gbps/lane, D-PHY spec. ver. 1.2 compliant)
◆2-wire serial communication
◆Advanced Noise Reduction (Chroma noise reduction and RAW noise reduction)
◆12K bit of OTP ROM for users
◆Quad Bayer Coding color filter arrangement
Binning (16:9)
◆Electronic Image Stabilization (EIS)
◆High signal to noise ratio(SNR)
◆Dual sensor synchronization operation
◆Built-in 2D Dynamic Defect Pixel Correction
◆Lens Shading Correction (LSC)
◆Built-in temperature sensor
◆Output video format of RAW10/8, COMP8
◆Pixel binning readout function
◆Two PLLs for independent clock generation for pixel control and data output interface
◆CSI-2 serial data output (MIPI 2lane/4lane, Max. 2.3Gbps/lane, D-PHY spec. ver. 1.2 compliant)
◆2-wire serial communication
◆Advanced Noise Reduction (Chroma noise reduction and RAW noise reduction)
◆12K bit of OTP ROM for users
◆Quad Bayer Coding color filter arrangement
