2MP Ov2710 Fixed Focus Mipi Camera Module
Hot Sales Fixed Focus 2Mp Ov2710 DVP Parallel Camera Module for Notebook Computers/Printers/Pdas/Digital Cameras

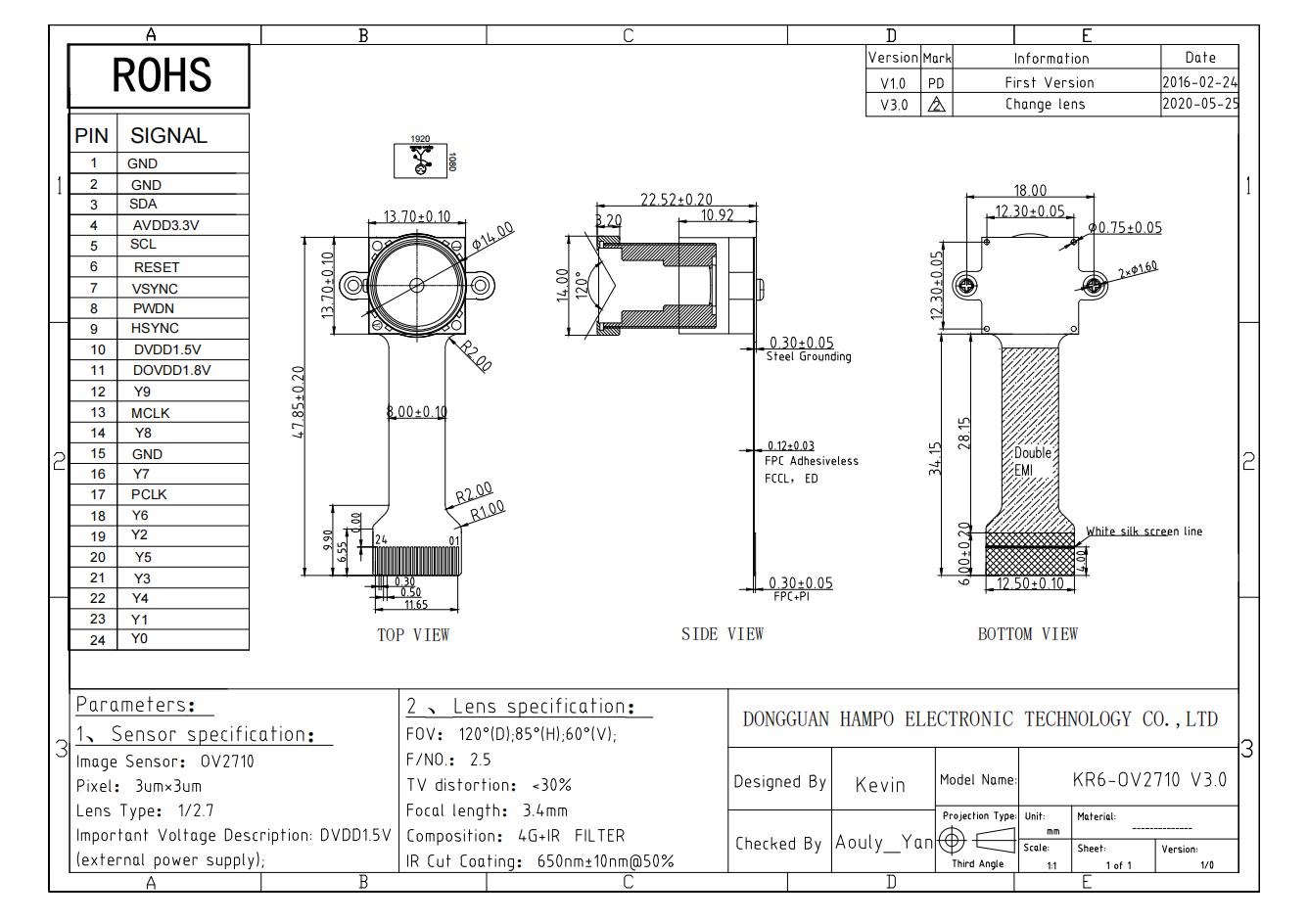

HAMPO-KR6-OV2710 V3.0 is a 2MP OmniVision OV2710 DVP Parallel Interface M12 Fixed Focus Camera Module.It uses 0.5mm and 1mm Pitch Connectors For FPC/FFC.
Applications :Notebook computers, printers, PDAs, digital cameras and other compact devices for interconnecting the main circuit board with the LCD, HDD or other device.
Specification
|
Camera Module No.
|
HAMPO-KR6-OV2710 V3.0
|
|
Resolution
|
2MP
|
|
Image Sensor
|
OV2710
|
|
Sensor Size
|
1/2.7"
|
|
Pixel Size
|
3.0 um x 3.0 um
|
|
EFL
|
3.40 mm
|
|
F/No.
|
2.50
|
|
Pixel
|
1920 x 1080
|
|
View Angle
|
120.0°(DFOV) 85.0°(HFOV) 60.0°(VFOV)
|
|
Lens Dimensions
|
13.70 x 13.70 x 22.52 mm
|
|
Module Size
|
47.85 x 22.00 mm
|
|
Focusing
|
Fixed Focus
|
|
Interface
|
DVP Parallel
|
|
Lens Type
|
650nm IR Cu
|
|
Operating Temperature
|
-30°C to +85°C
|
Key Features
programmable controls: gain, exposure, frame rate, image size, horizontal mirror, vertical flip, cropping, windowing, and panning
support for one lane MIPI interface (up to 800 Mbps)
support for 8-/10-bit RAW RGB output format
support for image sizes:
- 1080p at 30 fps
- cropped 720p at 60 fps
- VGA at 120 fps
- 1080p at 30 fps
- cropped 720p at 60 fps
- VGA at 120 fps
