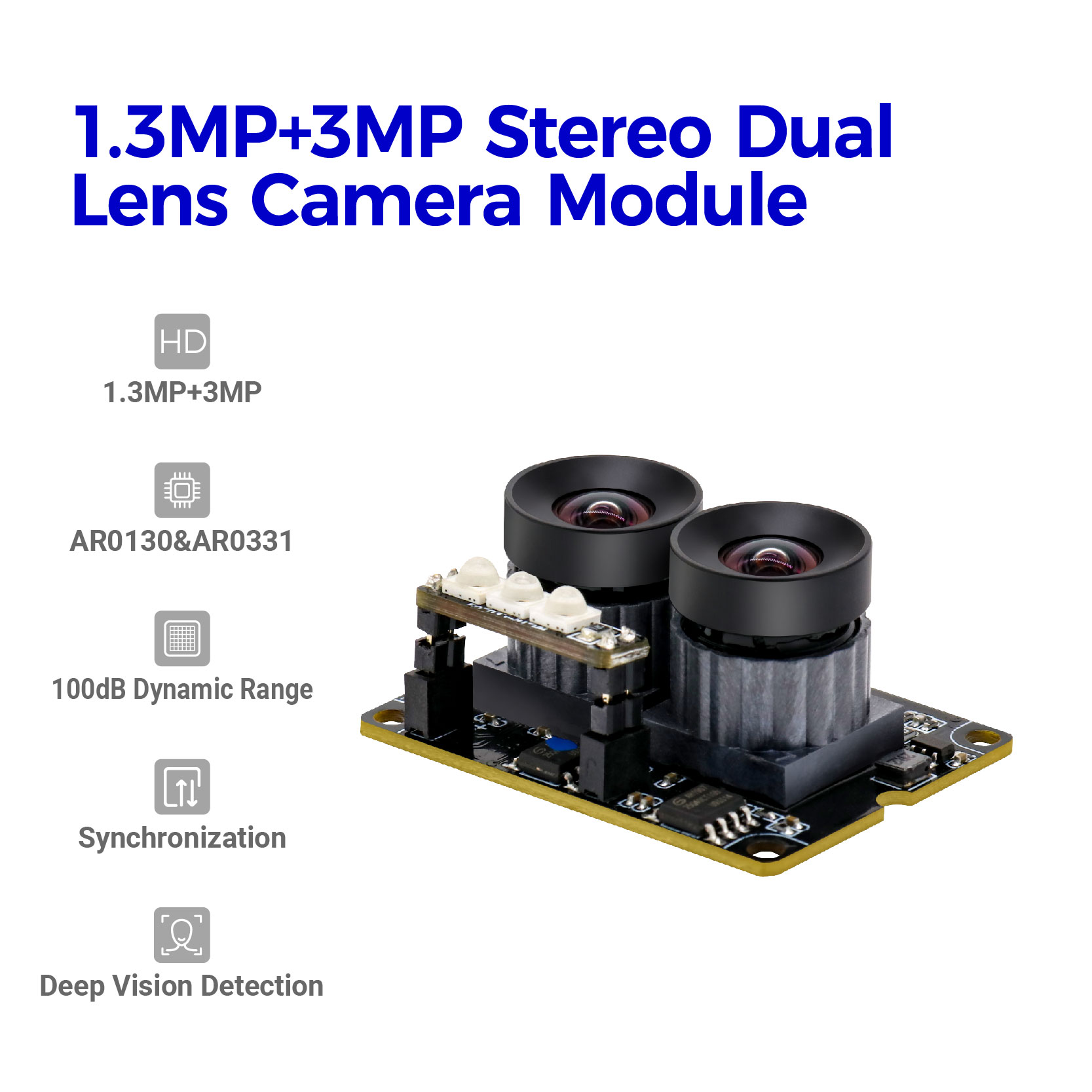

3MP WDR AR0331 Dual Lens Camera Module
Dual Lens 1080P 30fps WDR 100dB USB Camera Module with Double Lens synchronization for Biometric Retina Camera Face Recognition
Product Description
Hampo 003-0446 is a a synchronized binocular USB camera module, adopting 1/3" AR0331 and AR0130 image sensor, the high resolution is 2480*1536@30fps and 1280*960@30fps, featuring excellent wide dynamic range technology performance, max dynamic range up to 100dB.
The outstanding feature for this module is the two camera’s video frame is synchronous, just like human's eyes. Dual-Lens Camera Module, equipped with high-performance AI intelligent vision processor, has powerful AI computing performance, supports various AI frameworks and human detection with high recognition accuracy，widely used for binocular stereo vision secondary development which directly simulates the manner of human eyes observing one scene from two different viewpoints. Like Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, People Counting & Tracking, Access Control etc application.
Features:
Synchronized dual lens camera module: The dual lens camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do. Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.
3MP+1.3MP Resolution: The camera module adopt 1/3” AR0331&AR0130 sensor, having high resolution 2480*1536@30fps and 1280*960@30fps for HD image.
Best Universal Compatibility: Dual lens camera module support USB 2.0 OTG,plug&play. USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux
Wide Application: The dual lens camera module is widely used for deep vision detection scenarios, such as face recognition, access control system,robot vision,Virtual reality(VR),biometric Retina analyze,3D measurement,Intelligent transportation system,People Counting & Tracking etc.

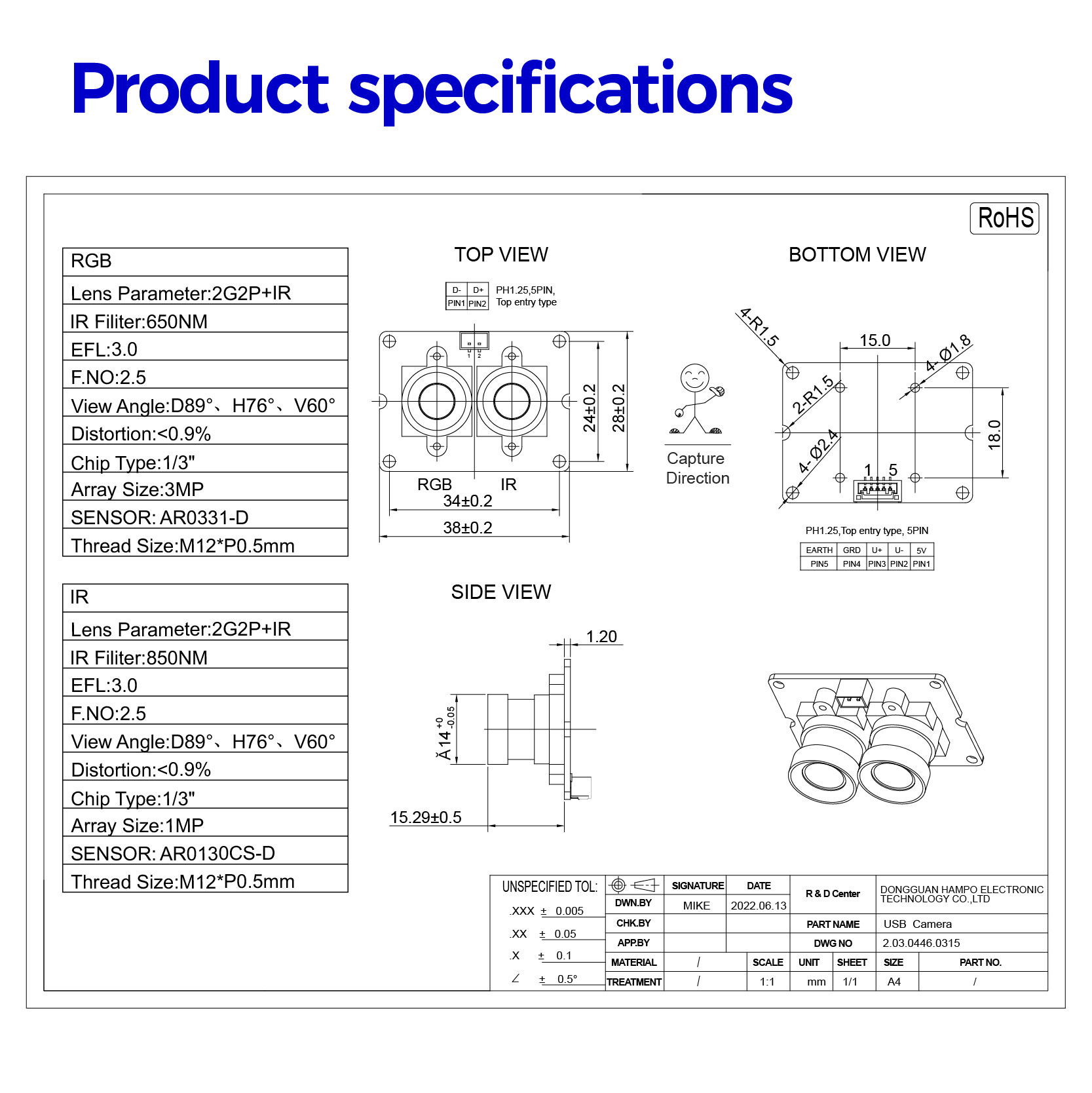

SPECS
|
Model No. 003-0446
|
||
|
Camera
|
RGB Camera
|
IR Camera
|
|
Max Resolution
|
2480*1536
|
1280*960
|
|
Sensor
|
1/3" AR0331
|
1/3"AR0130
|
|
Frame Rate
|
30fps
|
30fps
|
|
Pixel Size
|
2.2μm*2.2μm
|
3.75μm*3.75μm
|
|
Output Format
|
YUY2/MJPG
|
YUY2/MJPG
|
|
Dynamic Range
|
100dB
|
82dB
|
|
S/N Ratio
|
39dB
|
44dB
|
|
Lens
|
||
|
Focus
|
Fixed focus
|
Fixed focus
|
|
FOV
|
D=89° H=76°
|
D=89° H=76°
|
|
Lens Mount
|
M12 * P0.5mm
|
M12 * P0.5mm
|
|
Focusing Range
|
3.3ft (1M) to infinity
|
3.3ft (1M) to infinity
|
|
TTL
|
15.29MM
|
15.29MM
|
|
Distortion
|
＜0.9%
|
＜0.9%
|
|
Power
|
||
|
Working Current
|
MAX 500mA
|
|
|
Voltage
|
DC 5V
|
|
|
Physical
|
||
|
Interface
|
USB2.0
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
-20ºC to +70ºC
|
|
PCB Size
|
38*28*20(MM)
|
|
|
Cable Length
|
3.3ft (1M)
|
3.3ft (1M)
|
|
Functionality and Compatibility
|
||
|
Adjustable parameter
|
Exposure/ White balance
|
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
|
Applications
AI vision like depth vision and stereo vision, Robot vision, Virtual reality(VR), Augmented Reality(AR), biometric Retina analyze, 3D measurement, Intelligent transportation system, People Counting & Tracking, Astrophotography, selfservice terminal, ATM, face recognition, access control system, teaching equipment, Somatosensory game
