4K 13MP Sony IMX258 HDR Auto focus MIPI Camera Module
4K 13MP Sony IMX258 CMOS Sensor HDR Auto focus MIPI Camera Module
Product Description
Key Features
Phase Detection pixel data output for Phase Detection Auto Focus
High Dynamic Range (HDR) mode with raw data output.
High signal to noise ratio (SNR).
Full resolution @30fps (Normal / HDR). 4K2K @30fps (Normal / HDR) 1080p @60fps (Normal )
Output video format of RAW10/8.
Pixel binning readout and V sub-sampling function.
Independent flipping and mirroring.
CSI-2 serial data output (MIPI 2lane/4lane, Max. 1.3Gbps/lane, D-PHY spec. ver. 1.1 compliant)
2-wire serial communication.
Two PLLs for independent clock generation for pixel control and data output interface.
Dynamic Defect Pixel Correction.
Fast mode transition. (on the fly)
Dual sensor synchronization operation.
4K bit of OTP ROM for users.
Built-in temperature sensor.

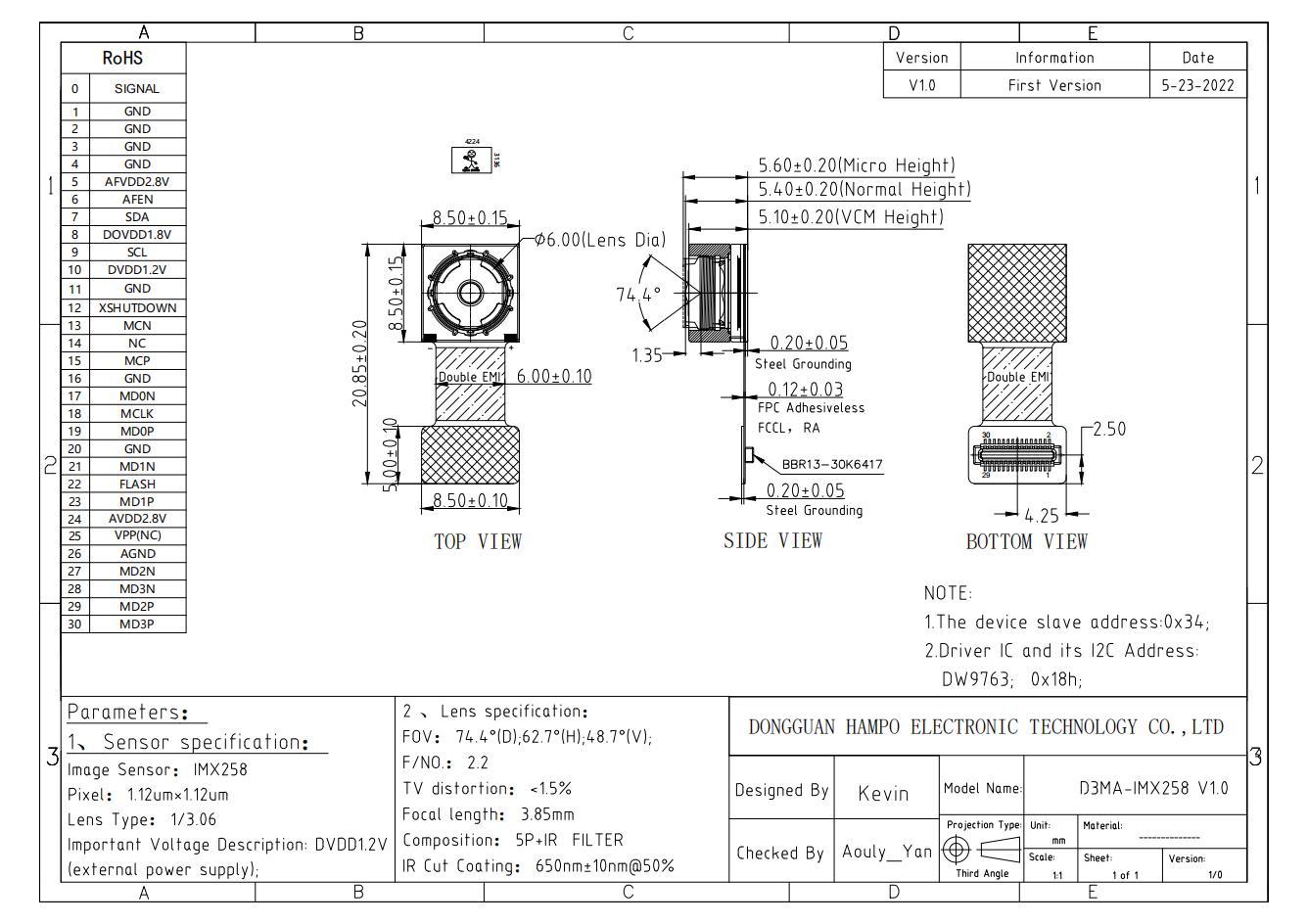

Specification
|
Camera Module No.
|
HAMPO-D3MA-IMX258 V1.0
|
|
Resolution
|
13MP
|
|
Image Sensor
|
IMX258
|
|
Sensor Size
|
1/3.06"
|
|
Pixel Size
|
1.12 um x 1.12 um
|
|
EFL
|
3.81mm
|
|
F/No.
|
2.2
|
|
Pixel
|
4224 x 3136
|
|
View Angle
|
74.4°(DFOV) 62.7°(HFOV) 48.7°(VFOV)
|
|
Lens Dimensions
|
8.50 x 8.50 x 5.37 mm
|
|
Module Size
|
20.85 x 8.50 mm
|
|
Focusing
|
Auto Focus
|
|
Interface
|
MIPI
|
|
Auto Focus VCM Driver IC
|
DW9763
|
|
Lens Type
|
650nm IR Cut
|
|
Operating Temperature
|
-20°C to +70°C
|
