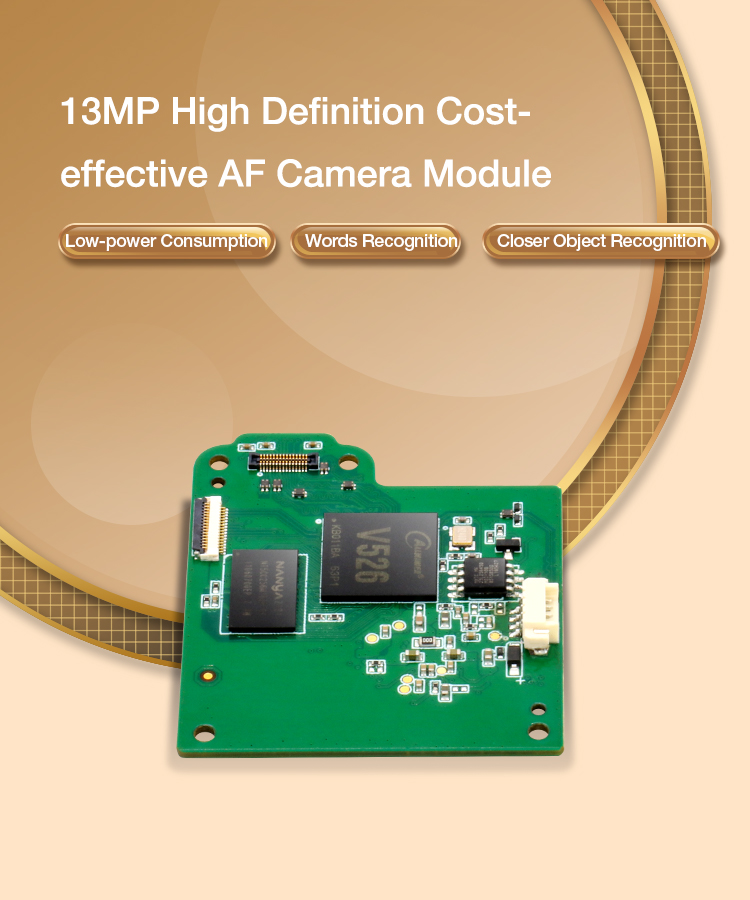

4K Imx258 Development Board Camera Module
GN-CAI183 is a high-performance, low-power consumption solution of camera module base on Allwinner V536. Mainly developed for words recognition, tongue detection and closer object recognition, it adopts 13MP advanced Sony image sensor, auto focusing,can judge details quickly and accurately.It is a cost-effective AF camera module.
Feature:

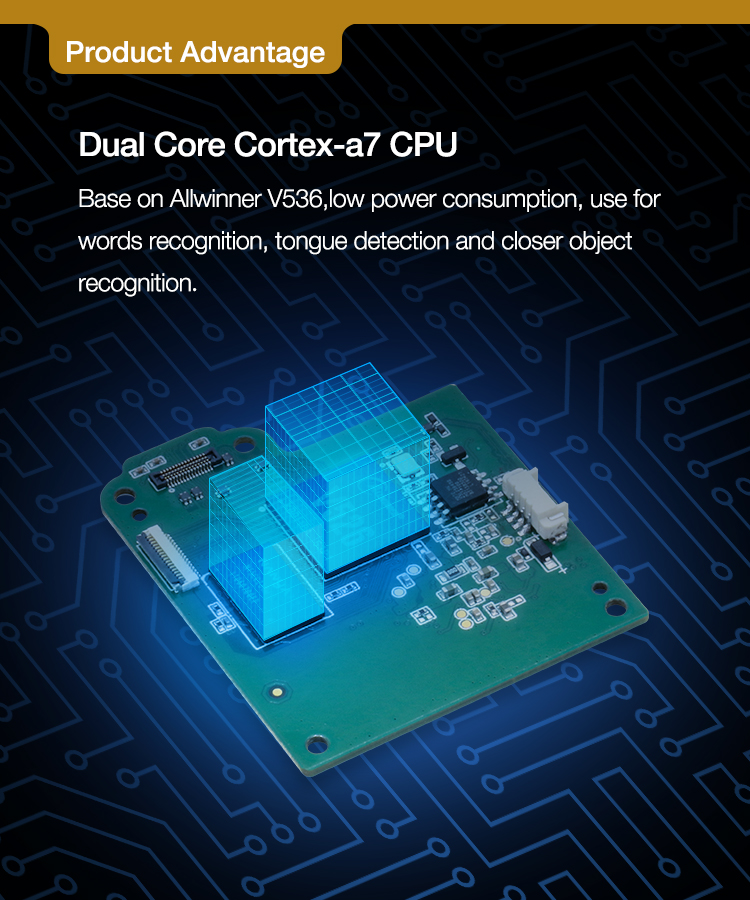

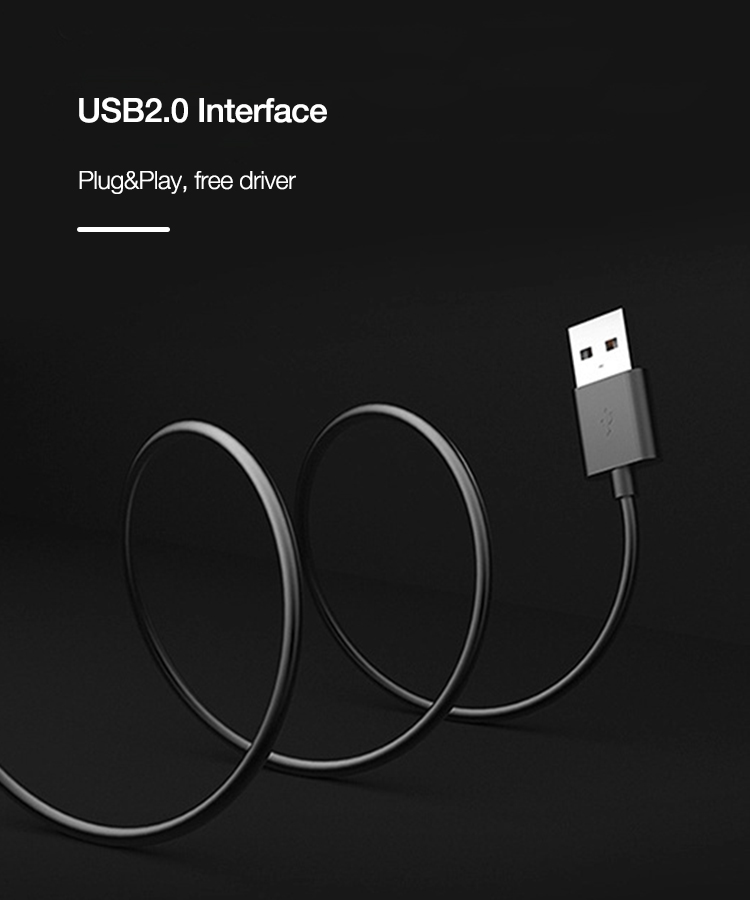

1.Dual core Cortex-a7 CPU2.1/3.06″ 13MP high resolution sensor3.13MP@30fps/1080P@60fps4.AF auto focusing, fast and accurate framing5.Adjust strong sunlight and compensation under backlight,Gamma,color enhancemen etc function6.Low power consumption7.USB2.0 interface

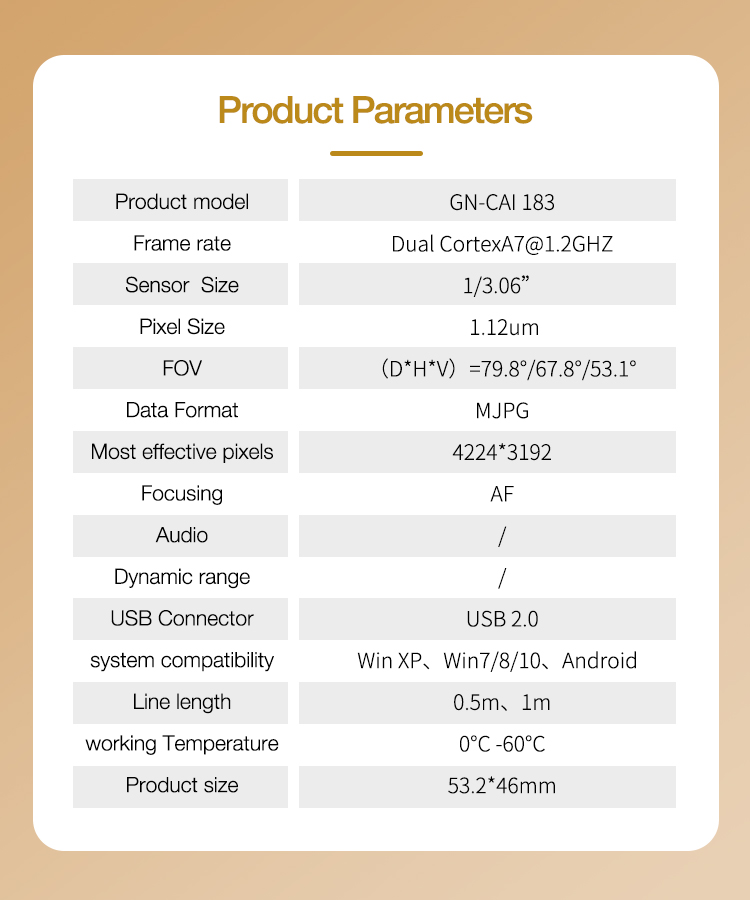

SPECS
| SOC | V536 |
| Frame Rate | Dual core CortexA7@1.2GHZ |
| Technics | 28nm |
| DDR | 32-bit DDR3/DDR4/LPDDR3/LPDDR4 |
| Storage | EMMC5.0 Max 64G |
| Camera | |
| Image Sensor | IMX258 |
| Sensor Size | 1/3.06″ |
| Resolution | 4224*3192 |
| Pixel Size | 1.12um |
| Lens | Focus length:3.46mm TTL:3.94 |
| FOV(D*H*V)=79.8°/67.8°/53.1° | |
| TV DISTORTION≤1.5% | |
| Mount:M6.5*P0.25 | |
| Output Format | MJPG |
| Focusing | AF |
| Voltage | 5V |
| Interface | MIPI |
| Storage Temperature | -20~70ºC |
| Compatible System | Windows7/10 |
