5MP OV5693 Autofocus USB Camera Module
Face Detection CMOS Sensor Mini Camera Wide Angle Full HD 5mp USB ODM Camera Module for Indoor Outdoor Customized OEM H.264
Description:

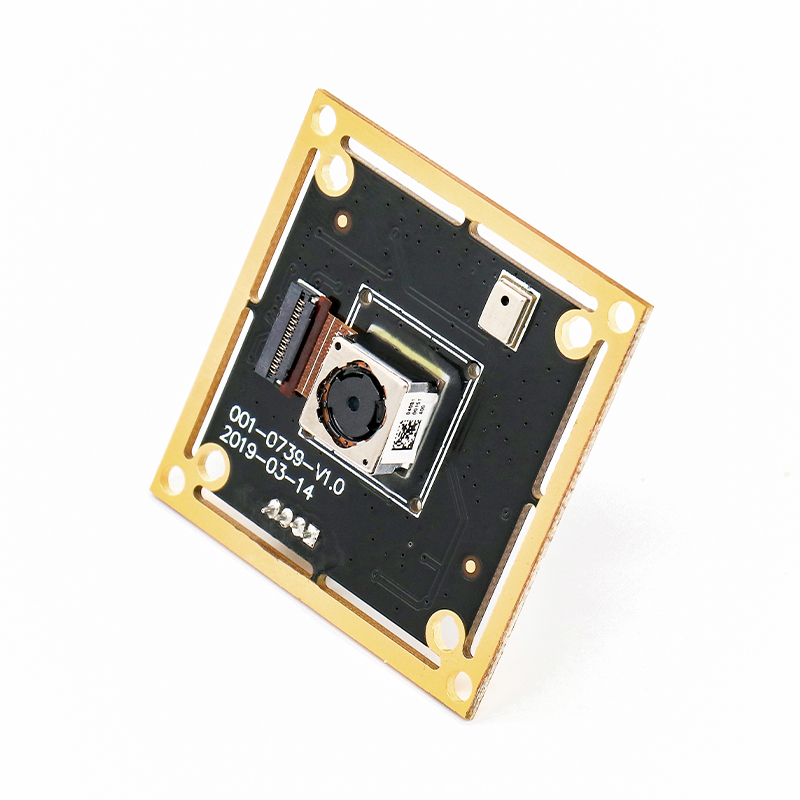

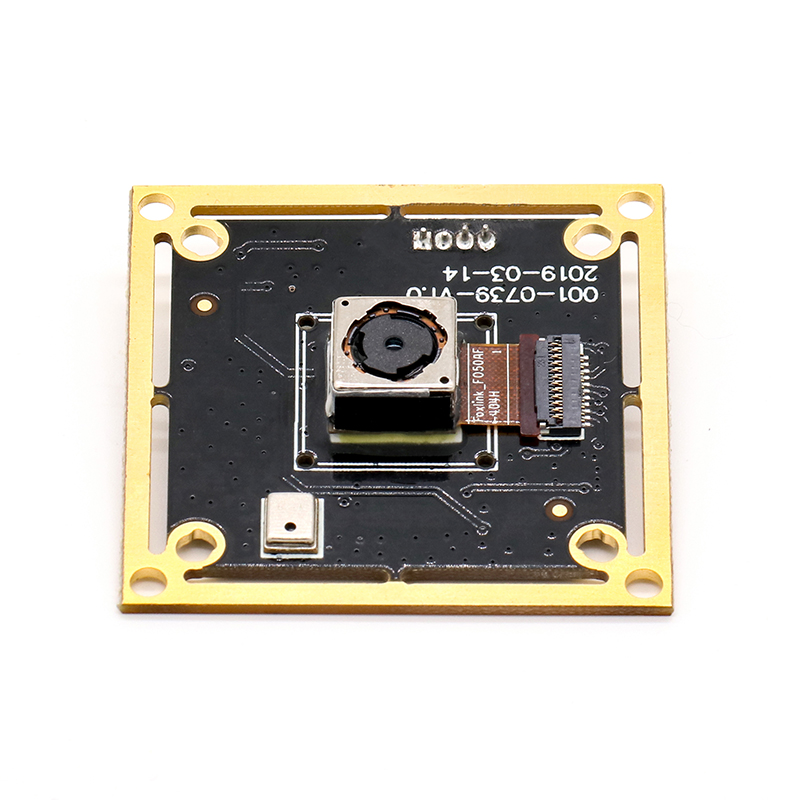

003-0739 is a 5MP AF USB camera module with 1/4" CMOS OV5693 sensor, 2K of resolution show you a ultra clear image.
The max frame rate is 30fps at 2592*1944. 5MP AF camera module compatible with most OS and popular Apps: Win XP/ Vista /Win7/Win8 Linux with UVC.
Features:
5MP HD High Resolution USB Webcam Module with Audio
5MP USB camera module ultra HD webcam module, the max resolution:2592*1944P. Perfect for high levels video system of education or administration. MJPG/YUV compression format optional, recorded clear, vivid, and auto focusing. Support OTG optional.
Auto Focusing
Shoot objects in millimeter level and in the distance on the same camera, automatically controlled without lens adjustment tool, closer and easier than the fixed focus camera. It can quickly and automatically refocus when an object changes position.
Plug&Play:
Drive-free USB camera module is very easy to use, just need to plug the camera to USB port, no need to download or install any drivers. High speed USB 2.0 USB camera also support OTG protocol(UVC).
Applications:
Document Scanner
Beauty equipment
Education Products etc
Beauty equipment
Education Products etc
SPECS:
|
|
|
Model
|
003-0739
|
|
Max Resolution
|
2592*1944
|
|
Sensor Size
|
1/4
|
|
Pixel Size
|
1.4μm*1.4μm
|
|
Wide Dynamic range
|
/
|
|
Output Format
|
MJPG/YUY2
|
|
Focus
|
Fixed focus
|
|
Frame rate
|
30fps
|
|
Voltage
|
DC 5V
|
|
Working current
|
MAX 300mA
|
|
Interface
|
USB 2.0
|
|
Storage Temperature
|
-20°C to +70°C
|
|
System compatibility
|
1) Windows XP（SP2,SP3）/Vista/7/8/10
2) Linux or OS with UVC driver
|
|
Audio
|
YES
|
|
PCBA Size
|
38*38/32*32mm
|
|
FOV
|
D=70°
|
|
TTL
|
19mm
|
|
Lens construction
|
5P
|
|
Thread size
|
M12*P0.5
|
Related articles: USB Camera Module Manufacturing Process
