5MP Sony IMX335 MIPI Interface M12 Fixed Focus Camera Module
Factory Customized 5MP SOny IMX335 MIPI Interface M12 Fixed Focus MIPI Camera Module
HAMPO-J5MF-IMX335 V1.0 is a 5megapixel MIPI interface camera module,using 1/2.8" Sony IMX335 image sensor which 152Degree wide angle lens, the max definition is 2592 x 1944.Features like a dynamic range up to 72 dB, advanced HDR functions and digital overlap HDR further improve the image quality and contrast behavior allowing for more detailed image analysis. These features when combined with the low dark current performance and no smear further improve its performance in applications looking at both bright and dark regions at once.

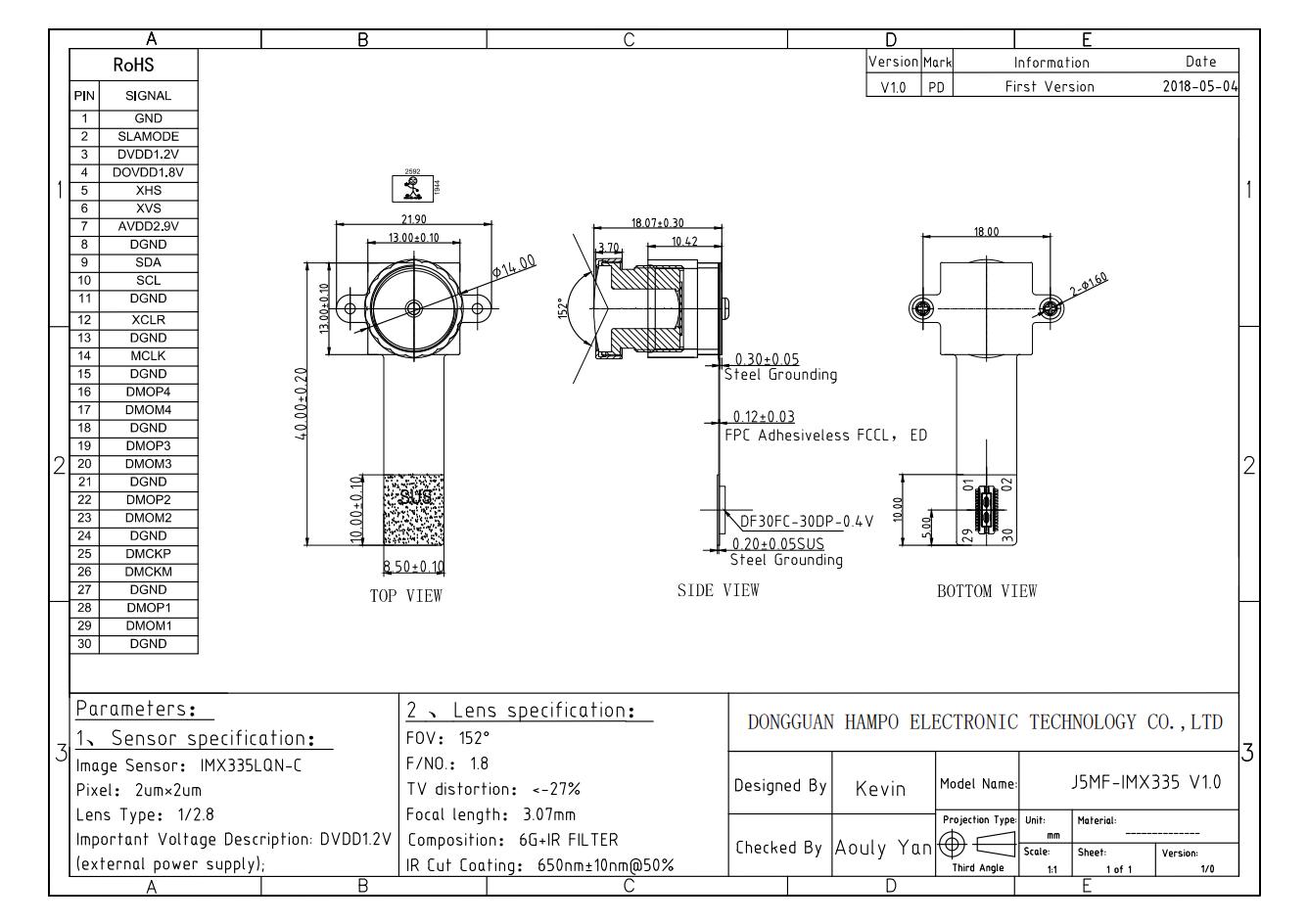

Specification
|
Camera Module No.
|
HAMPO-J5MF-IMX335 V1.0
|
|
Resolution
|
5MP
|
|
Image Sensor
|
IMX335
|
|
Sensor Size
|
1/2.8"
|
|
Pixel Size
|
2.0 um x 2.0 um
|
|
EFL
|
3.07 mm
|
|
F/No.
|
1.8
|
|
Pixel
|
2592 x 1944
|
|
View Angle
|
152.3°(DFOV) 124.2°(HFOV) 64.2°(VFOV)
|
|
Lens Dimensions
|
13.00 x 13.00 x 18.07 mm
|
|
Module Size
|
40.00 x 21.90 mm
|
|
Focusing
|
Fixed Focus
|
|
Interface
|
MIPI
|
|
Lens Type
|
650nm IR Filter Lens
|
|
Operating Temperature
|
-20°C to +85°C
|
