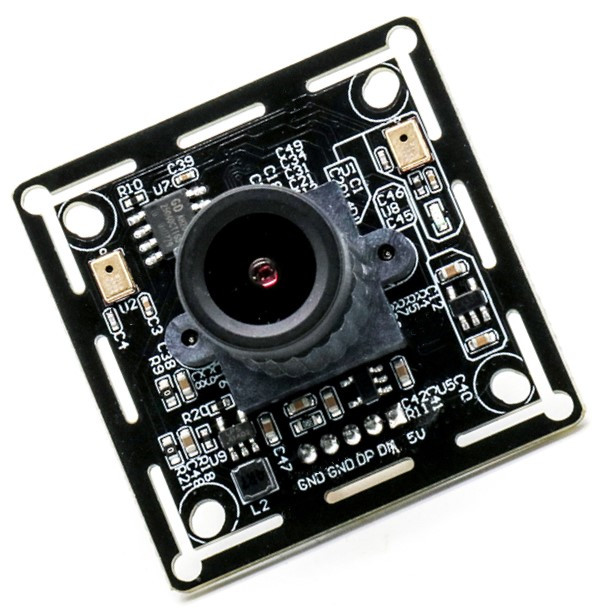

5MP USB Camera Module Support WDR

This is a 2K 5MP fixed focus board camera with economic price and WDR support. This 5MP USB camera is based on 1/2.5″ large size PS5520 CMOS image sensor with advanced 2.2µm pixel technology from ON Semiconductor. It has S-mount (M12) lens holder which allows customers to choose and use the lens according to their requirement.It is a Plug-and-Play camera (UVC compliant) for Windows and Linux.

The Max frame rate:

MJPG:

2592×1944@30FPS; 2048×1536@30FPS; 1920×1080@30FPS; 1280×960@30FPS; 1280×720@30FPS; 1024×768@30FPS; 800×600@30FPS; 640×480@30FPS; 320×240@30FPS;

YUY2:

2592×1944@2FPS; 2048×1536@5FPS; 1920×1080@5FPS; 1280×960@5FPS; 1280×720@10FPS; 1024×768@15FPS; 800×600@20FPS; 640×480@30FPS; 320×240@30FPS;

Feature:

Wide Dynamic Range:

WDR is short for Wide Dynamic Range. The WDR technology is applied for viewing the image smoothly under the condition of severe light contrast. Broadly speaking, it stands for the possible range of certain changing object or an area the minimum value and the maximum value spans that can be seen. WDR allows an imaging system to correct for the intense back light surrounding a subject and thus enhances the ability to distinguish features and shapes on the subject.

This 5MP WDR USB camera module use PS5520 image sensor with a 85dB wide dynamic rage which is the high standard in terms of image quality and sensitivity performance. The image sensor helps to produce sharp images effectively. This USB camera module usually use with 90degree wide angle lens, it could be optioned according to customer’s requirement from 40°-220°.The cameras module can meet most capturing and video requirements.

2K HD Resolution:

This camera module adopt a large chip 1/2.5″ PS5520 image sensor with 2.2µm*2.2µm pixel technology from ON Semiconductor. The HD 2592×1944 of resolution at 30fps has a 2K HD image. Best for face recognition, access control system, LED display etc.

Plug & Play:

Driver-free USB camera module is very easy to use, just need to plug the camera to USB port, no need to download or install any drivers. High speed USB 2.0 USB camera also support OTG protocol(UVC).

SPECS

Camera

Sensor: PS5520

Sensor Size: 1/2.5”

Resolution: 2592*1944

WDR: 85DB

Output: MJPC/YUY2

Frame Rate: 30fps

Lens

FOV: D=90°

Mount: M12*P0.5mm

Power

Power Supply: DC 5V

Working Current: MAX 500mA

Physical

Operating Temp.: -4°F~158°F (-20°C~+70°C).

Dimension: 38*38mm/32*32mm

Applications

Face Recognition

Access Control System

LED Display etc.
