720P GC1054 Wide Angle Camera Module
Factory Direct Sale 1Megapixel Low Power Consumption 1/4 Inch 720p GC1054 Sensor Wide Angle Usb Camera Module
Description:

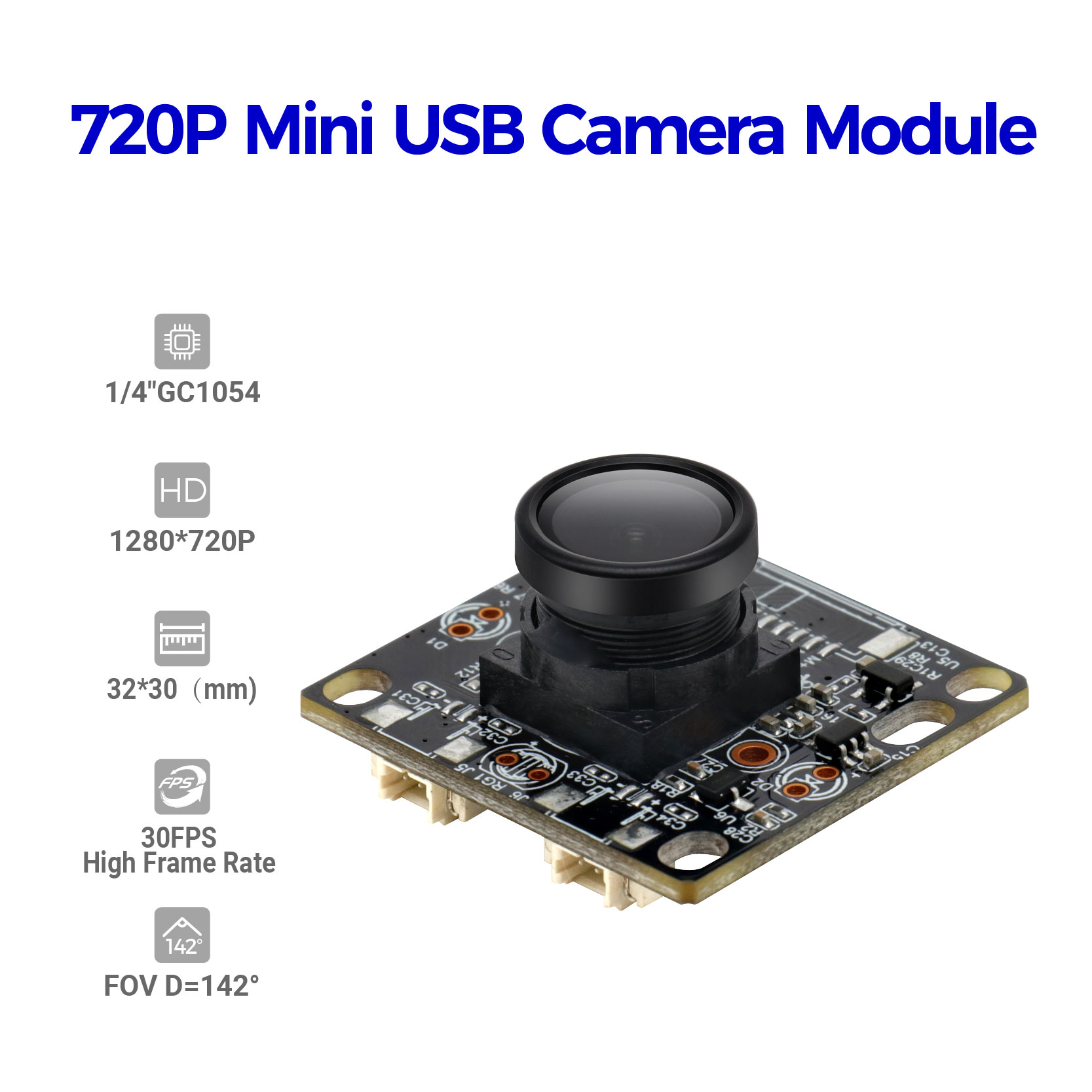

Hampo 003-1829 isa high-quality 720P mini camera module, based on the 1/4" GC1054 CMOS sensor, with an integrated 1280H x 720V pixel array，which has the high and stable image quality.
Its USB interface supports USB 2.0 high-speed data transmission and OTG UVC (OTG PROTOCOL). The cost-effective GC1054 sensor can perform all automatic functions (such as automatic white balance, automatic exposure control) to achieve image and video YUY2 and MJPEG stable transmission and compression.
32mm*30mm ultra micro PCB board camera module, suitable for installation in concealed, narrow positions such as video doorbell, advertising machine, all-in-one, laptop and other products. Compatible with Windows 7, 8/10/11, Linux operating systems.
Key Features
High Cost Efficient:
This camera adopts the 1MP GC1054 COMS sensor, which cuts costs and gets decent image quality.
Wide View of Angle:
Assembled with a 142°（D) 110°(H) ultra wide angle M12 lens.
Frame Rates:
MJPG 30fps@1280 x 720/640 x 480/320 x 240; YUY2 10fps@1280 x 720; 30fps@640 x 480/320 x 240.
720P Camera Module with High Sensitivity:
18000 e-/lux-sec
Plug&Play:
UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications:
Highly recommended for the video surveillance system, video conference, dashcam, motoring 3D printer and other vision applications.
SPECS:
|
Camera
|
|
|
Model No.
|
003-1829
|
|
Max Resolution
|
1280*720P
|
|
Sensor
|
1/4" GC1054
|
|
Frame Rate
|
30fps
|
|
Pixel Size
|
3.0μm*3.0μm
|
|
Output Format
|
YUY2/MJPG
|
|
Sensitivity
|
18000 e-/lux-sec
|
|
S/N Ratio
|
41.4dB
|
|
Dynamic Range
|
70.7dB
|
|
Lens
|
|
|
Focus
|
Fixed focus
|
|
FOV
|
D=142° H=110°
|
|
Lens Mount
|
M12 * P0.5mm
|
|
Focusing Range
|
3.3ft (1M) to infinity
|
|
Power
|
|
|
Working Current
|
MAX 200mA
|
|
Voltage
|
DC 5V
|
|
Physical
|
|
|
Interface
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|
Operating Temp
|
-4°F~158°F (-20°C~+70°C)
|
|
PCB Size
|
32*30(MM)
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
1.6MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Exposure/ White balance
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
Applications
This module is widely used in Visual Doorbell，Charging pile，Smart Lock，Robot，Video surveillance system，Video conference，Motoring 3D printer，Access ControlSports camera，Car DVR，Security monitor，Toy，Security system，Industrial and environmental systems.
Related articles: USB Camera Module Manufacturing Process
1. How to order?
We will quote the price to customers after received their requests. After customers confirmed the specification, they will order samples for testing. After inspected all devices , it will be sent to the customer by express.
2. Do you have any MOQ (minimum order)?
Sample order will be supported.
3. What is the payment terms?
T/T bank transfer is accepted ,and 100% balance payment before goods shipment.
4. What is your OEM requirement?
You can choose multiple OEM services includes the pcb layout, update the firmware, color box design, change deceive name, logo label design and so on.
5. How many years have you been established?
We focus on the audio&video products industry over 8 years.
6. How long is the warranty?
We offer 1 year warranty to all of our products.
7. How long is the delivery time?
Normally the sample devices could be delivered within 7 working day , and the bulk order will depend on the quantity .
8.What kind of software support I can get?
Hampo provided lots of tailor-made rugged solutions to customers, and we can also provide SDK for some of projects, software online upgrade , etc.
9.What kind of services can you provide?
There is two services models for your option ,One is OEM service ,which is with customer’s brand based on our off-the-shelf products ;the other is ODM service according to the individual demands ,which included Appearance design ,structure design ,Mold development ,software and hardware development etc.
