CAMERA MODULE

720P Miniature Endoscope Camera Module

Hello, welcome to consult our products!

720P Miniature Endoscope Camera Module

1/9 inch super mini sensor & lens USB camera module,HD resolution 1280*720P @30fps. Widely use in laptop, medical, endoscope etc.



Support:  Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days


Product Detail

Product Tags

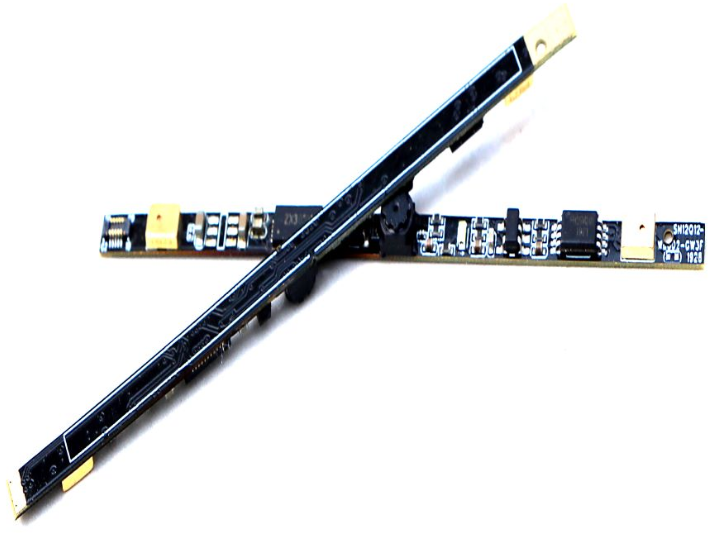

003-0853 is a kinds of mini USB camera module, the delicate and small shape with 1MP HD(1280*720P@30fps) of resolution, show an excellent function on laptop, endoscope etc. Using 1/9” OV9734 Cmos sensor with FOV  84°of Lens. Compatible with Widows 10, Android etc.



Features:

1. Mini size with 1/9” sensor, narrow, thin shape, nice for laptop, endoscope;

2. 720P HD Resolution: Based on 1/9” OV9734 CMOS sensor, the max resolution 1280*720P at 30fps.

3. 3D Noise Reduction: This camera module has a 3D noise reduction function.





SPECS:

Camera

Sensor: OV9734

Sensor Size: 1/9”

Resolution: 1280*720P

Output: MJPC/YUY2

Frame Rate: 30fps

Wide Dynamic Range: 34DB



Lens

FOV: D=84°

TTL: 2.8mm

Construction: 3P

Mount: M3*P0.25mm



Power

Power Supply: DC 3.3V

Working Current: MAX 300mA



Physical

Operating Temp.: -30°C~+60°C

Dimension: 75*3.5mm



Applications:

Medical

Endoscope

Laptop etc.

720P Mini Camera Module for Endoscope
