Manufacturer Customized HD 720P Robot USB Camera Module
JX-H62 CMOS image sensor 720P 30fps small size low cost 32*32mm USB2.0 Camera board module
Hampo 003-0662-V1.0 , a 1mp high resolution FF mini camera module, based on the 1/4" JXH62 CMOS sensor, which has the high and stable image quality. Its USB interface supports USB 2.0 high-speed data transmission and OTG UVC (OTG PROTOCOL). The cost-effective JXH62 sensor can perform all automatic functions (such as automatic white balance, automatic exposure control) to achieve image and video YUY2 and MJPEG stable transmission and compression.
Key Features:
High Cost Effective USB Camera Module:
720P Robot USB Camera Module with 1/4” H62 sensor is a type of camera module with competitive price and high quality.
Plug&Play
This USB camera is easy to use, only plug and camera into computer USB port and running the software can make video display and recording work. No drive installation is required.
Mini Size
32*32mm mini size USB board camera module, could greatly embedded camera board for multi-application like robot, video doorbell, smart door lock etc.
Rolling Shutter:
The camera adopt a rolling shutter exposure, which advantage is it has a shorter exposure time than global shutter camera.

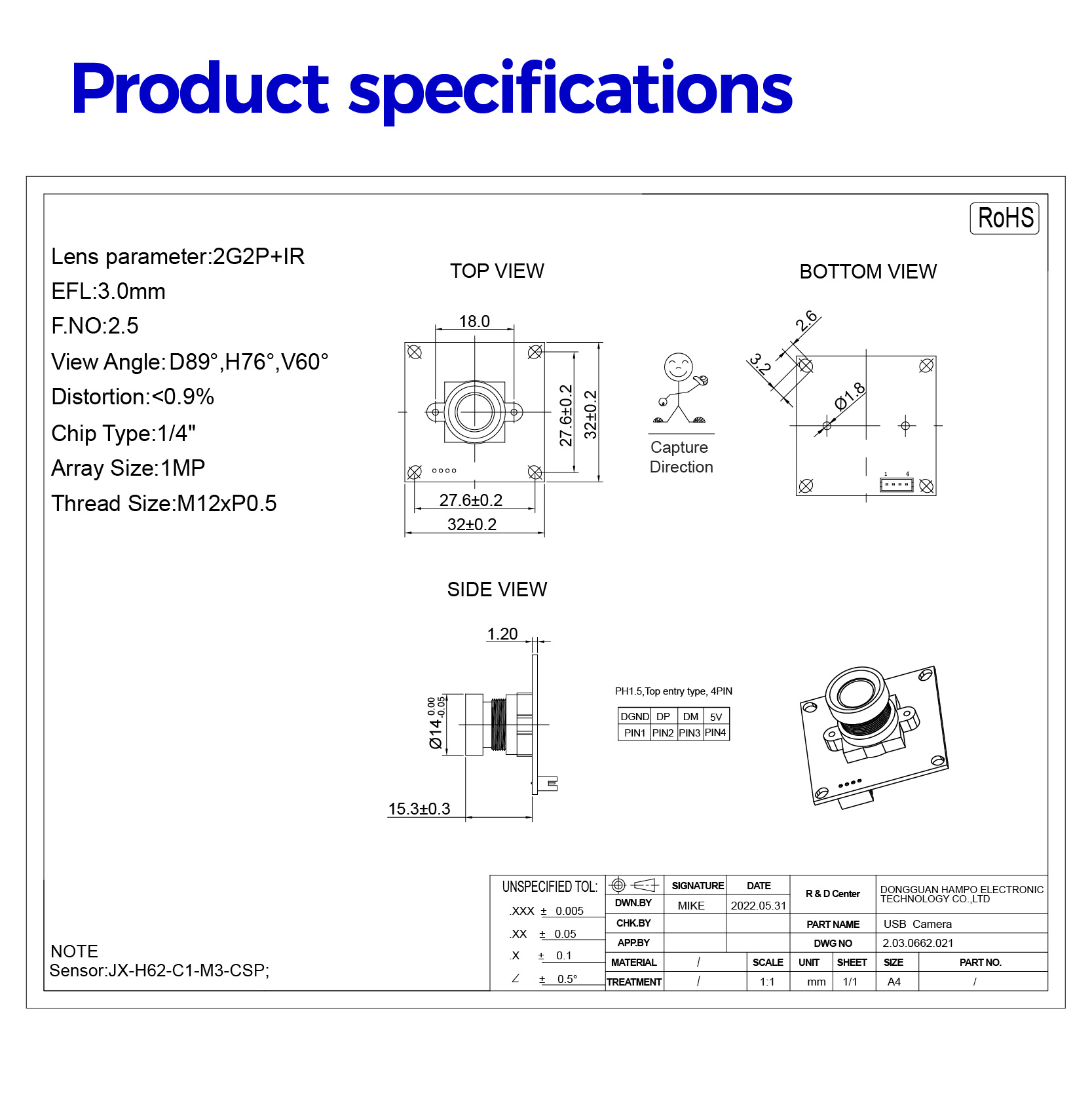

SPECS
|
Camera
|
|
|
Model No.
|
003-0662
|
|
Max Resolution
|
1280x720
|
|
Sensor
|
1/4" JX-H62
|
|
Frame Rate
|
30fps
|
|
Pixel Size
|
3.0μm*3.0μm
|
|
Output Format
|
YUY2/MJPG
|
|
Lens
|
|
|
Focus
|
Fixed focus
|
|
FOV
|
D=89° H=76°
|
|
Lens Mount
|
M12 * P0.5mm
|
|
Focusing Range
|
3.3ft (1M) to infinity
|
|
Power
|
|
|
Working Current
|
MAX 200mA
|
|
Voltage
|
DC 5V
|
|
Physical
|
|
|
Interface
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|
Operating Temp
|
-4°F~158°F (-20°C~+70°C)
|
|
PCB Size
|
32mm*32mm
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
15.3MM
|
|
EFL
|
3.0MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Exposure/ White balance
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
Applications
Robot
Video Door Phone
Smart Door Lock
Charging Pile etc.
