720P SP1405 Cost-effective Camera Module
Factory Direct Sale 1Megapixel Cost-effective 1/4 Inch 720p SP1405 Sensor Wide Angle Usb Camera Module
Description:

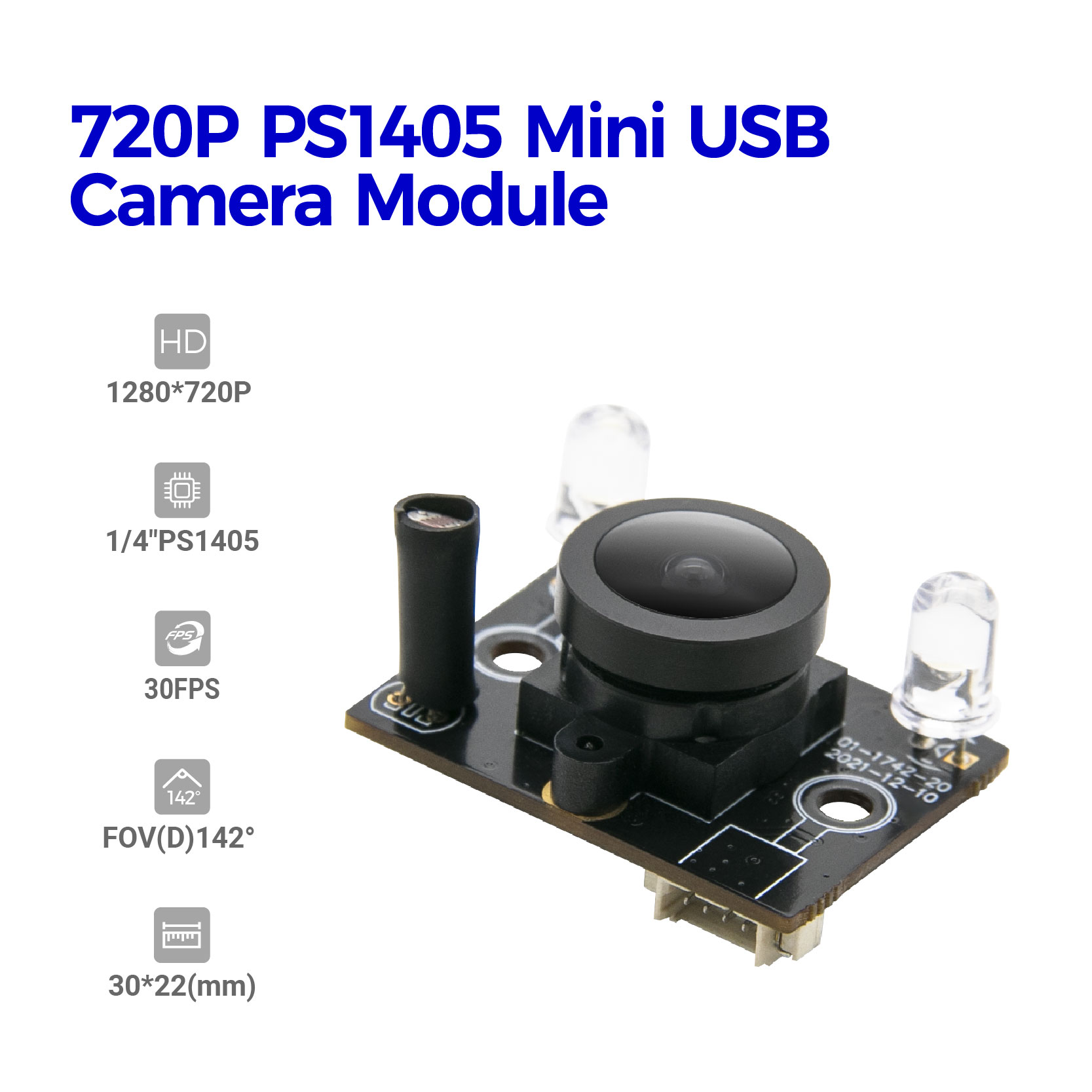

Hampo 003-1742 is a high-quality 720P mini camera module, based on the 1/4" SP1405 CMOS sensor, with an integrated 1280H x 720V pixel array，which has the high and stable image quality. Its USB interface supports USB 2.0 high-speed data transmission and OTG UVC (OTG PROTOCOL). The cost-effective SP1405 sensor can perform all automatic functions (such as automatic white balance, automatic exposure control) to achieve image and video YUY2 and MJPEG stable transmission and compression.
30mm*22mm ultra micro PCB board camera module, suitable for installation in concealed, narrow positions such as video doorbell, advertising machine, all-in-one, laptop and other products. Compatible with Windows 7, 8/10/11, Linux operating systems.
Features:
High Cost Efficient: This camera adopts the 1MP SP1405 COMS sensor, which cuts costs and gets decent image quality.

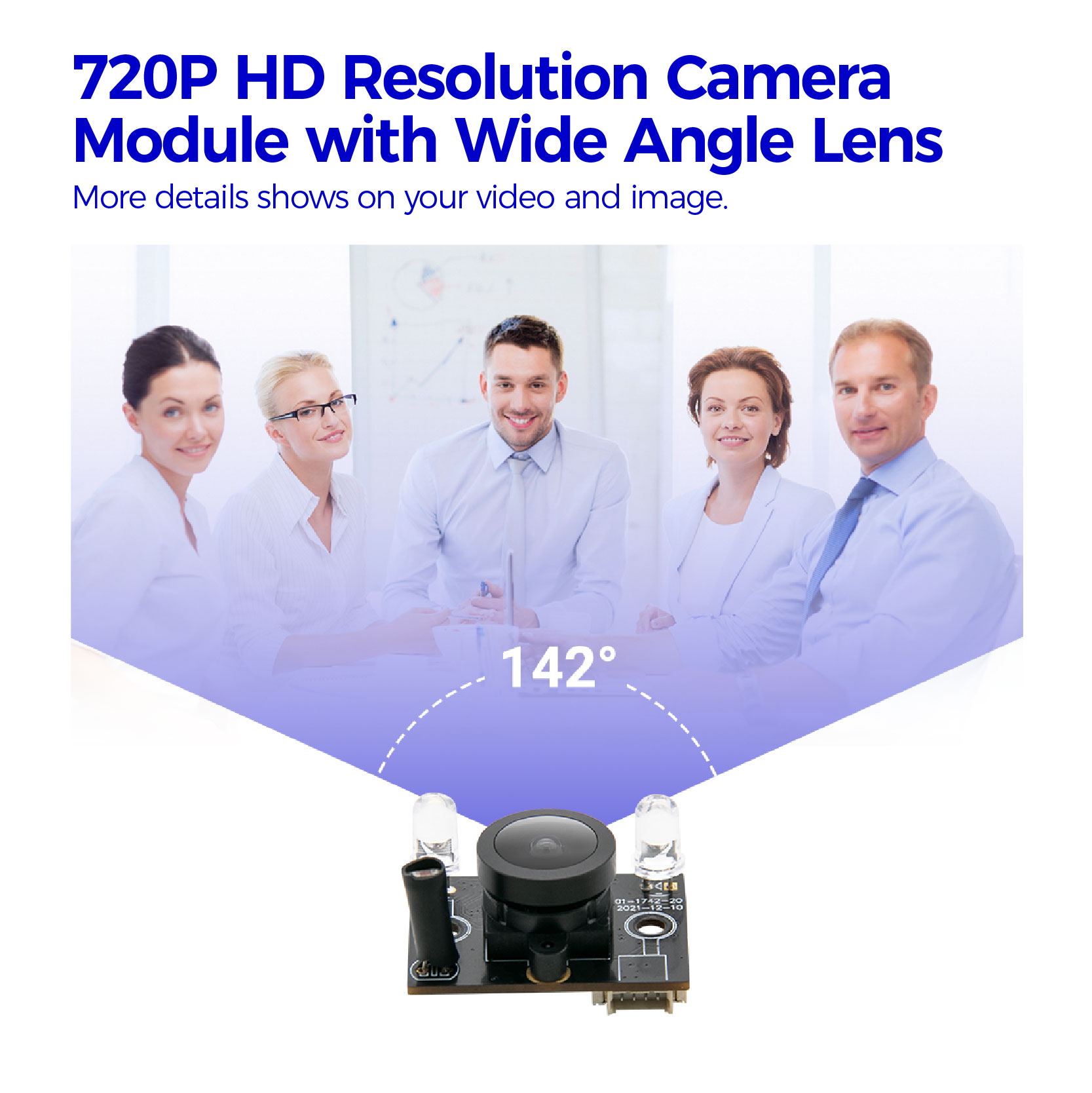

Wide View of Angle: Assembled with a142°（D) 110°(H) ultra wide angle M12 lens.
Frame Rates: MJPG 30fps@1280 x 720/640 x 480/320 x 240; YUY2 10fps@1280 x 720; 30fps@640 x 480/320 x 240.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: Highly recommended for the video surveillance system, video conference, video doorbell, smart lock,dashcam, motoring 3D printer and other vision applications.

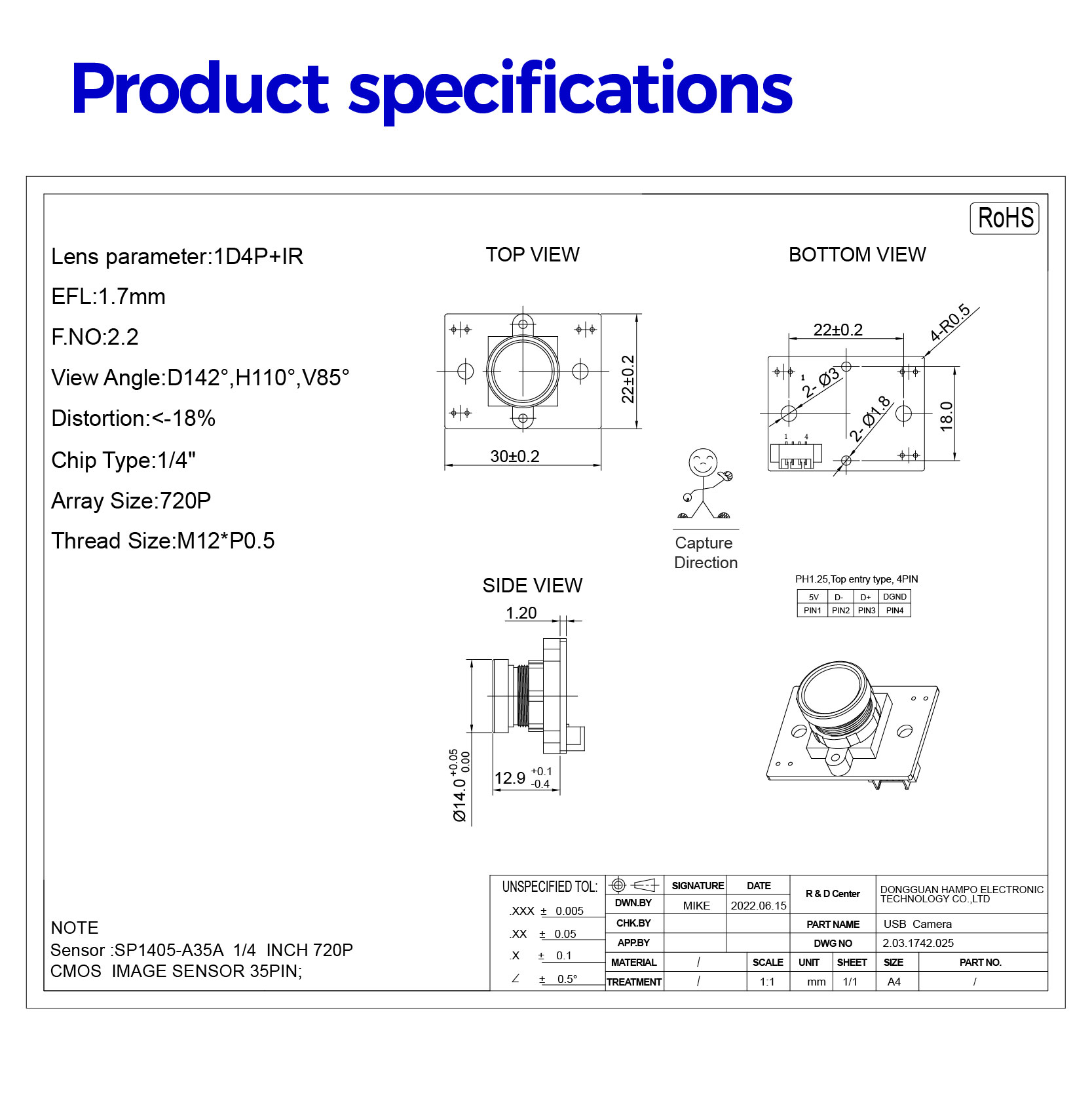

SPECS:
|
Camera
|
|
|
Model No.
|
003-1742
|
|
Max Resolution
|
1280*720P
|
|
Sensor
|
1/4" SP1405
|
|
Frame Rate
|
30fps
|
|
Pixel Size
|
3.0μm*3.0μm
|
|
Output Format
|
YUY2/MJPG
|
|
Lens
|
|
|
Focus
|
Fixed focus
|
|
FOV
|
D=142° H=110°
|
|
Lens Mount
|
M12 * P0.5mm
|
|
Power
|
|
|
Working Current
|
MAX 200mA
|
|
Voltage
|
DC 5V
|
|
Physical
|
|
|
Interface
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|
PCB Size
|
30MM*22MM
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
1.7MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
Applications
Visual Doorbell Video conference
Motoring 3D printer Video surveillance system
Access ControlSports camera Robot
Car DVR Smart Lock
Security monitor Charging pile
Toys Industrial and environmental systems
Security system
