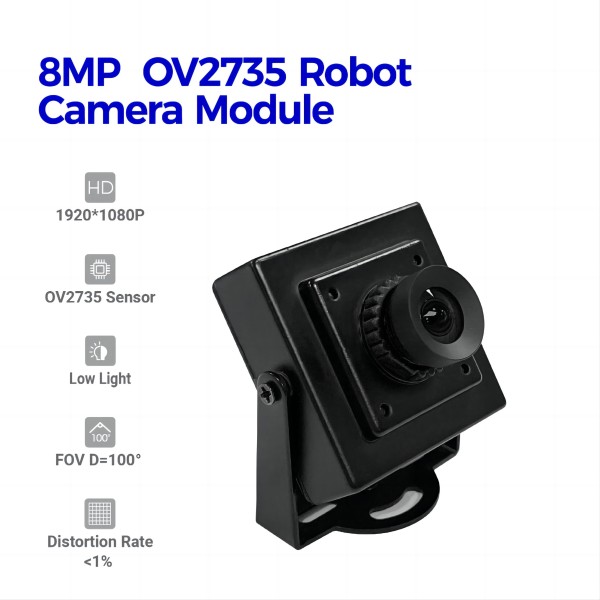

8MP 30fps 0V2735 Low Light Camera Module
Factory Customized 8MP 30fps 60fps 0V2735 Low Light 100degree Wide Angle No Distortion Robot Vision 1080P Camera Module
Hampo 003-1664-C is a 8MP full HD low light camera module, which adotping a high-performance 1/2.7" OMNIVISION’s OV2735 image sensor that brings 1080p high-definition (HD) video capture to mainstream security and surveillance cameras.
The 1080P usb camera module offers technical advancements such as support for low-power mode, stable image quality within operating temperatures ranging from 0°C to 60°C, and dramatically reduced power consumption.
As such, the module offers security and surveillance camera OEMs an easy upgrade camera solution in the popular 1/2.7-inch optical format.Built on OMNIVISION’s proven OmniPixel®3-HS pixel technology, the 8MP OV2735 camera module captures full-resolution 1080p HD video at 30 frames per second (fps) and 720p video at 60 fps. It is widely used for robot,PC webcam, robot,document scanner,industrial machine,drone,security and other mobile applications.
Key Features
More than HD: This camera module adopts 1/2.7" Omnivision OV2735 sensor for full HD 1920*1080P image quality and smooth video.Capture Video with Audio: High frame rates, the 8MP OV2735 camera module captures full-resolution 1080p HD video at 30 frames per second (fps) and 720p video at 60 fps.
Low Power&Low Light: The camera module feature low power and good low light performance.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: This tiny32mm x 32mm camera board can be installed in most hidden and narrow position for notebooks, PC webcam, robot,document scanner,industrial machine,drone,security and other mobile applications.
|
Camera
|
|
|
Model No.
|
003-1664
|
|
Max Resolution
|
1920*1080P
|
|
Sensor
|
1/2.7" OV2735
|
|
Frame Rate
|
MJPG 30fps@1920 x 1080/60fps@720P
|
|
Pixel Size
|
3.0μm*3.0μm
|
|
Output Format
|
YUY2/MJPG
|
|
Dynamic Range
|
72dB
|
|
Lens
|
|
|
Focus
|
Fixed focus
|
|
FOV
|
D=100° H=85° V=66°
|
|
Lens Mount
|
M12 * P0.5mm
|
|
Power
|
|
|
Working Current
|
MAX 200mA
|
|
Voltage
|
DC 5V
|
|
Physical
|
|
|
Interface
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|
Operating Temp
|
-4°F~158°F (-20°C~+70°C)
|
|
PCB Size
|
32MM*32MM(Hole pitch compatible with 28mmx28mm)
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
15.29MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
Applications
machinary equipment,all-in-one machine, robot, document scanner, industrial machine, Drone, medical auxiliary equipment
Security monitoring, face recognition, ATM, access control system, smart terminal
