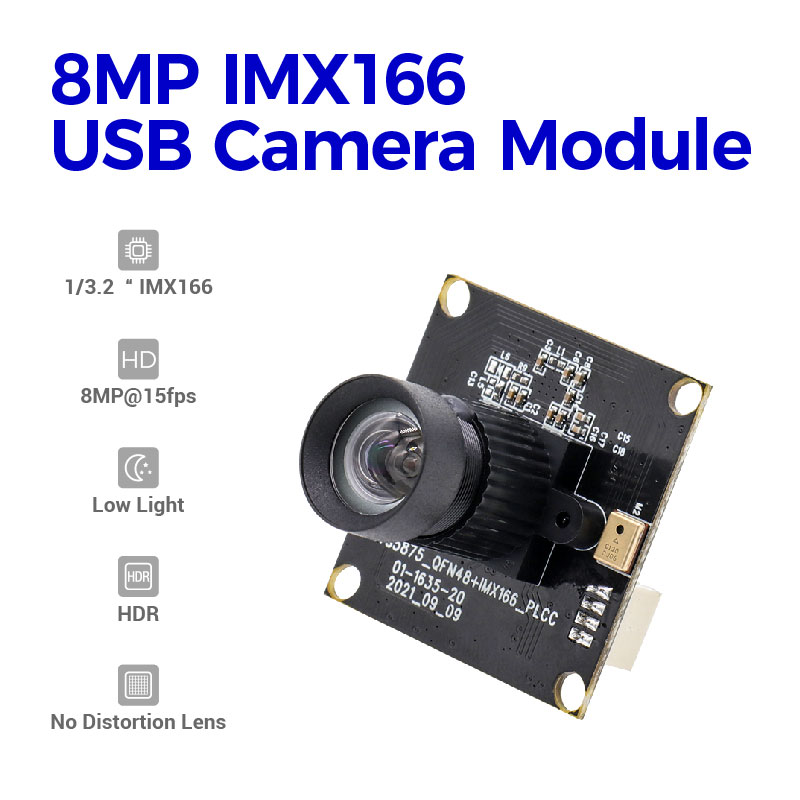

8MP IMX166 HDR USB Camera Module
8 Megapixel High Resolution IMX166 HDR Low Light Camera Module with Fixed Focus Distortionless Lens for Document Recognition
Description:
Hampo 003-1635 is a 3264*2448 ultra high definition (UHD) Camera that delivers excellent performance like low-light sensitivity, high dynamic range (HDR), and 8MP ultra HD video. Built in advanced 1/3.2" Sony IMX166 image sensor, with each pixel unit area 1.4 micron, the module can record 3264 (H) ×2448 (V) about 8 million effective pixels . using SONY's third generation of backlight technology, dark light ability, power consumption and photography speed are relatively good.The camera can capture high-definition images even in poorly light rooms or in high-contrast backlight conditions. This camera module is widely used for applications like robotics, artificial intelligence(AI), computer vison, machine vision, IoT, surveillance, face recognition, fin-tech, embedded device, intelligent machine, retail machine, industrial automation, agritech, etc.
Key Features
High Dynamic Range:The high resolution camera module delivers excellent performance like low-light sensitivity, high dynamic range (HDR), and 8MP ultra HD video
More Than HD: This camera adopts 1/3.2" IMX166 Sony sensor,recording 3264 (H) ×2448 (V) ultra high definition for sharp image and accurate color reproduction.
Plug&Play: Support Windows XP/7/8/10, Linux, Mac OS and Andriod device with UVC, just connect the camera to PC, laptop with the USB cable without extra drivers to be installed.
Applications: This tiny 32mm x 32mm camera board can be installed in most hidden and narrow position forrobotics, artificial intelligence(AI), computer vison, machine vision, IoT, surveillance, face recognition, fin-tech, embedded device, intelligent machine, retail machine, industrial automation, agritech, document scanner, OCR reader etc application.
|
Camera
|
|
|
Model No.
|
003-1635
|
|
Max Resolution
|
3264*2448P
|
|
Sensor
|
1/3.2" IMX166
|
|
Frame Rate
|
MJPG 3264x 2448@15FPS; 2592x1944@15FPS; 2048x1536@15FPS; 1600x1200@30FPS; 640x480@30FPS; YUY2 3264x 2448@2FPS; 2592x1944@2FPS;2048x1536@2FPS; 1600x1200@5FPS; 640x480@30FPS;
|
|
Pixel Size
|
1.4μm*1.4μm
|
|
Output Format
|
YUY2/MJPG
|
|
Lens
|
|
|
Focus
|
Fixed focus
|
|
FOV
|
D=72.5°
|
|
Lens Mount
|
M6.5 * P0.25mm
|
|
Power
|
|
|
Working Current
|
MAX 200mA
|
|
Voltage
|
AVDD2.8V/DVDD1.2V/DOVDD2.8V
|
|
Physical
|
|
|
Interface
|
USB2.0
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|
Operating Temp
|
0°C~+60°C
|
|
PCB Size
|
32MM*32MM
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
3.8MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Exposure/ White balance
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|

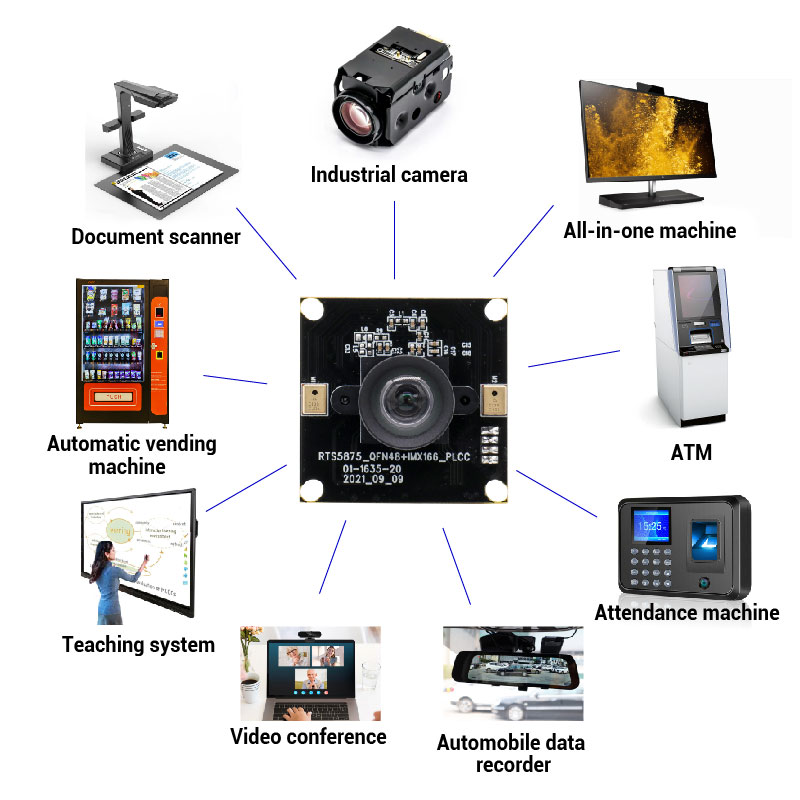

Applications
All-in-one machinePOS equipment /Credit card machineAutomatic vending machineATMFace MatchingOCR components/OCR ReaderTeaching systemSecurity systemAutomobile data recorderAttendance machineIndustrial cameraDocument Reader/Document scanner
Robotics
Artificial inte lligence(AI)
Fin-tech
Computer vison etc.
