8MP IMX219 MIPI Interface M12 Fixed Focus Camera Module
DVP High Resolution 8MP Sony IMX219 MIPI Interface M12 Fixed Focus Camera Module with Wide View of Angle Lens
|

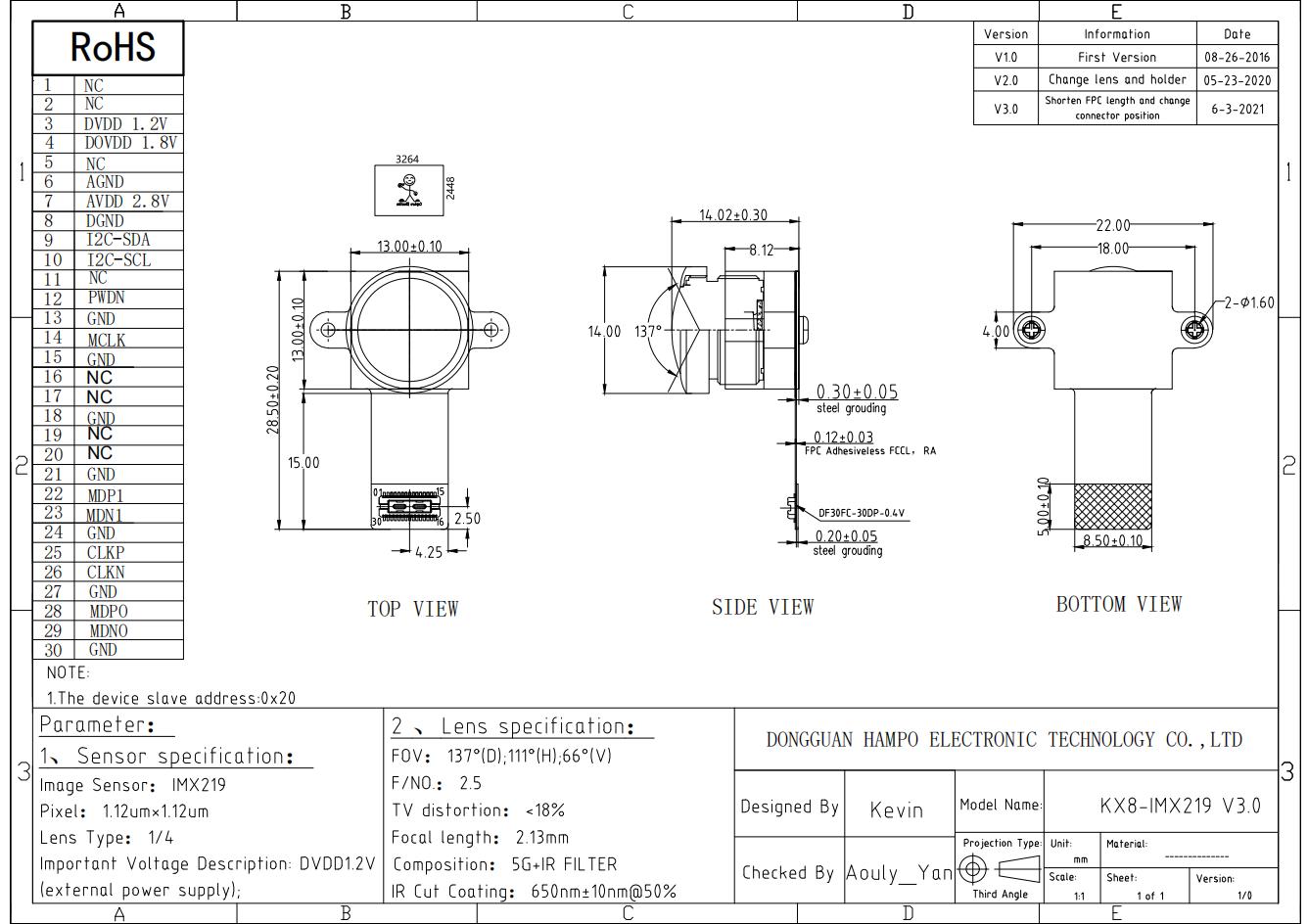

Camera Module No.
|
HAMPO-KX8-IMX219 V3.0
|
|
Resolution
|
8MP
|
|
Image Sensor
|
IMX219
|
|
Sensor Size
|
1/4"
|
|
Pixel Size
|
1.12 um x 1.12 um
|
|
EFL
|
2.13 mm
|
|
F/No.
|
2.5
|
|
Pixel
|
3296 x 2480
|
|
View Angle
|
137.0°(DFOV) 111.0°(HFOV) 66.0°(VFOV)
|
|
Lens Dimensions
|
13.00 x 13.00 x 14.02 mm
|
|
Module Size
|
28.50 x 13.00 mm
|
|
Focusing
|
Fixed Focus
|
|
Interface
|
MIPI
|
|
Lens Type
|
650nm IR Cut
|
|
Operating Temperature
|
-20°C to +60°C
|
Key Features
◆2-wire serial communication circuit on chip
◆CSI2 serial data output (selection of 4lane/2lane)
◆Timing generator, H and V driver circuits on chip
◆CDS/PGA on chip
◆10-bit A/D converter on chip
◆Automatic optical black (OB) clamp circuit on chip
◆PLL on chip (rectangular wave)
◆High sensitivity, low dark current, no smear
◆Excellent anti-blooming characteristics
◆Variable-speed shutter function (1 H units)
◆R, G, B primary color pigment mosaic filters on chip
◆Max. 30frame/s in all-pixel scan mode
◆Pixel rate: 280 [Mpixel/s] (All-pixels mode)
◆180 frame/s @720p with 2x2 analog (special) binning, 60 frame/s @1080p with V-crop
◆Datarate: Max.755Mbps/lane (@4lane), 912Mbps/Lane(@2lane)
