8MP OmniVision OV8856 MIPI Interface Fixed Focus Camera Module

HAMPO-G1MF-OV8856 V1.0 is a 8Megapixel Mipi interface camera module, adopting 1/4-inch OV8856 image sensor leverages OmniVision’s PureCel pixel architecture to capture full-resolution 8-megapixel images and video at 30 frames per second (fps), and 1080p high-definition (HD) video at 60 fps.

Support: Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days

Send email to us

Product Detail

DATASHEET

FAQ

Product Tags

Customized MIPI Camera 8MP OmniVision OV8856 MIPI Interface Fixed Focus Camera Module with Customizable Lens

Product Description

HAMPO-G1MF-OV8856 V1.0 is a 8Megapixel Mipi interface camera module, adopting 1/4-inch OV8856 image sensor leverages OmniVision's PureCel pixel architecture to capture full-resolution 8-megapixel images and video at 30 frames per second (fps), and 1080p high-definition (HD) video at 60 fps. The power-efficient OV8856 sensor also supports interlaced high dynamic range (iHDR) for clear images and video in high- and low-light conditions. Using a high speed four-lane MIPI interface, the OV8856 can output full-resolution, 8-megapixel 30 fps video over two MIPI lanes without requiring any data compression.

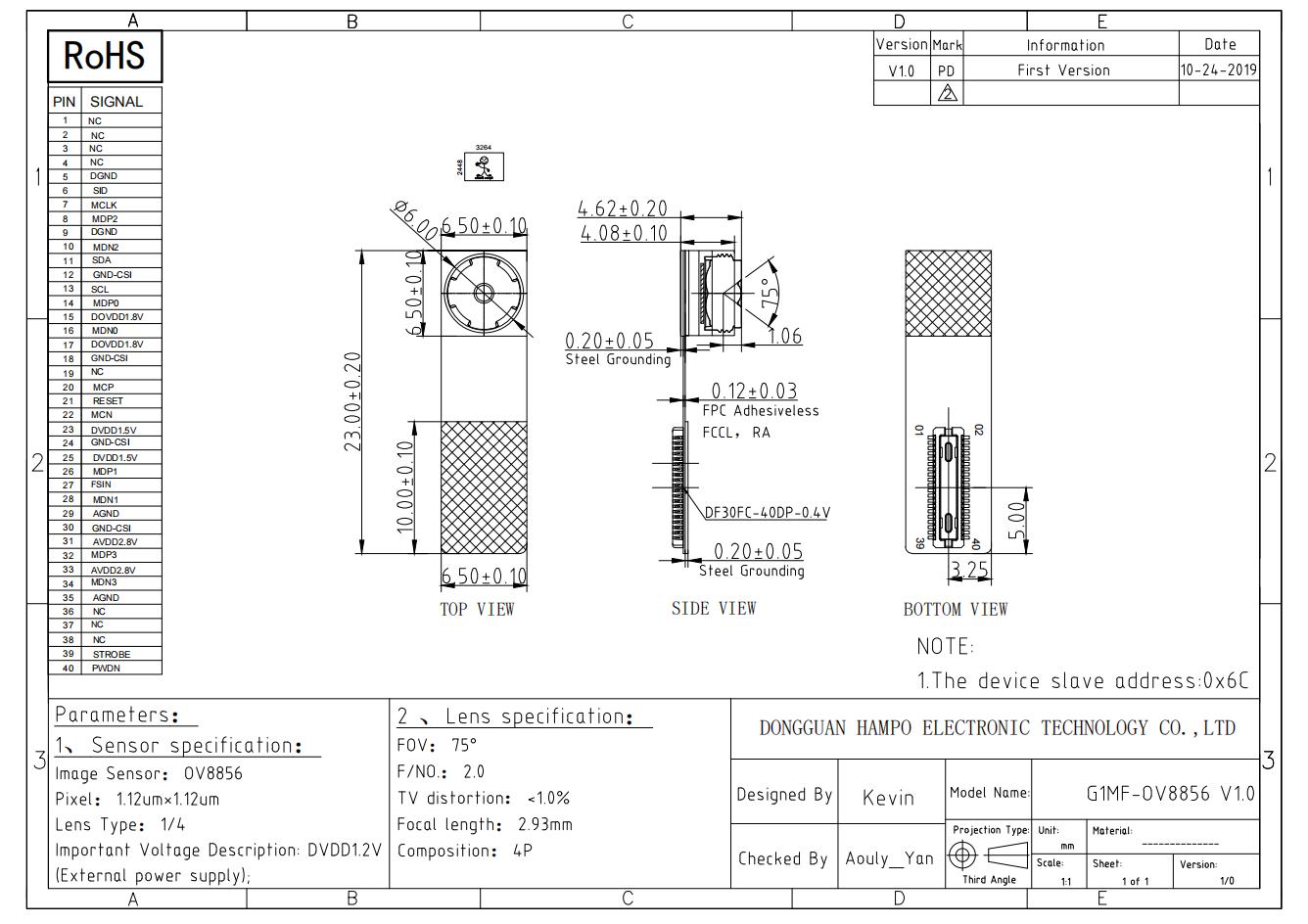

Specification

Camera Module No.	HAMPO-G1MF-OV8856 V1.0
Resolution	8MP
Image Sensor	OV8856
Sensor Size	1/4"
Pixel Size	1.12 um x 1.12 um
EFL	2.93 mm
F/No.	2.0
Pixel	3264 x 2448
View Angle	75.0°(DFOV) 62.8°(HFOV) 49.3°(VFOV)
Lens Dimensions	6.50 x 6.50 x 4.62 mm
Module Size	23.00 x 6.50 mm
Focusing	Fixed Focus
Interface	MIPI
Auto Focus VCM Driver IC	None
Lens Type	650nm IR Cut
Operating Temperature	-30°C to +85°C

Key Features

1.12 µm x 1.12 µm pixel
optical size of 1/4"
32.9° CRA for <5 mm Z-height
programmable controls for:
- frame rate
- mirror and flip
- cropping
- windowing
supports images sizes:
- 8MP (4:3, 3264x2448)
- 8MP (16:9, 3264x1836)
- EIS 1080p (2112x1188)
- 1080p (1920x1080)
- EIS 720p (1408x792), and more
8MP at 30 fps (720 Mbps/4-lane
or 1.44 Gbps/2-lane)

Applications

Previous: 8MP OS08A20 3D Global Exposure DVP MIPI Camera Module

Next: 4K 8MP Sony IMX334 Low Illumination MIPI Fixed Focus Camera Module

Here are Some Quick Links and Answers to Frequently Asked Questions.

Check back for updates or contact us with your question.

1. How to order?

We will quote the price to customers after received their requests. After customers confirmed the specification, they will order samples for testing. After inspected all devices , it will be sent to the customer by express.

2. Do you have any MOQ (minimum order)?

Sample order will be supported.

3. What is the payment terms?

T/T bank transfer is accepted ,and 100% balance payment before goods shipment.

4. What is your OEM requirement?

You can choose multiple OEM services includes the pcb layout, update the firmware, color box design, change deceive name, logo label design and so on.

5. How many years have you been established?

We focus on the audio&video products industry over 8 years.

6. How long is the warranty?

We offer 1 year warranty to all of our products.

7. How long is the delivery time?

Normally the sample devices could be delivered within 7 working day , and the bulk order will depend on the quantity .

8.What kind of software support I can get?

Hampo provided lots of tailor-made rugged solutions to customers, and we can also provide SDK for some of projects, software online upgrade , etc.

9.What kind of services can you provide?

There is two services models for your option ,One is OEM service ,which is with customer’s brand based on our off-the-shelf products ;the other is ODM service according to the individual demands ,which included Appearance design ,structure design ,Mold development ,software and hardware development etc.
