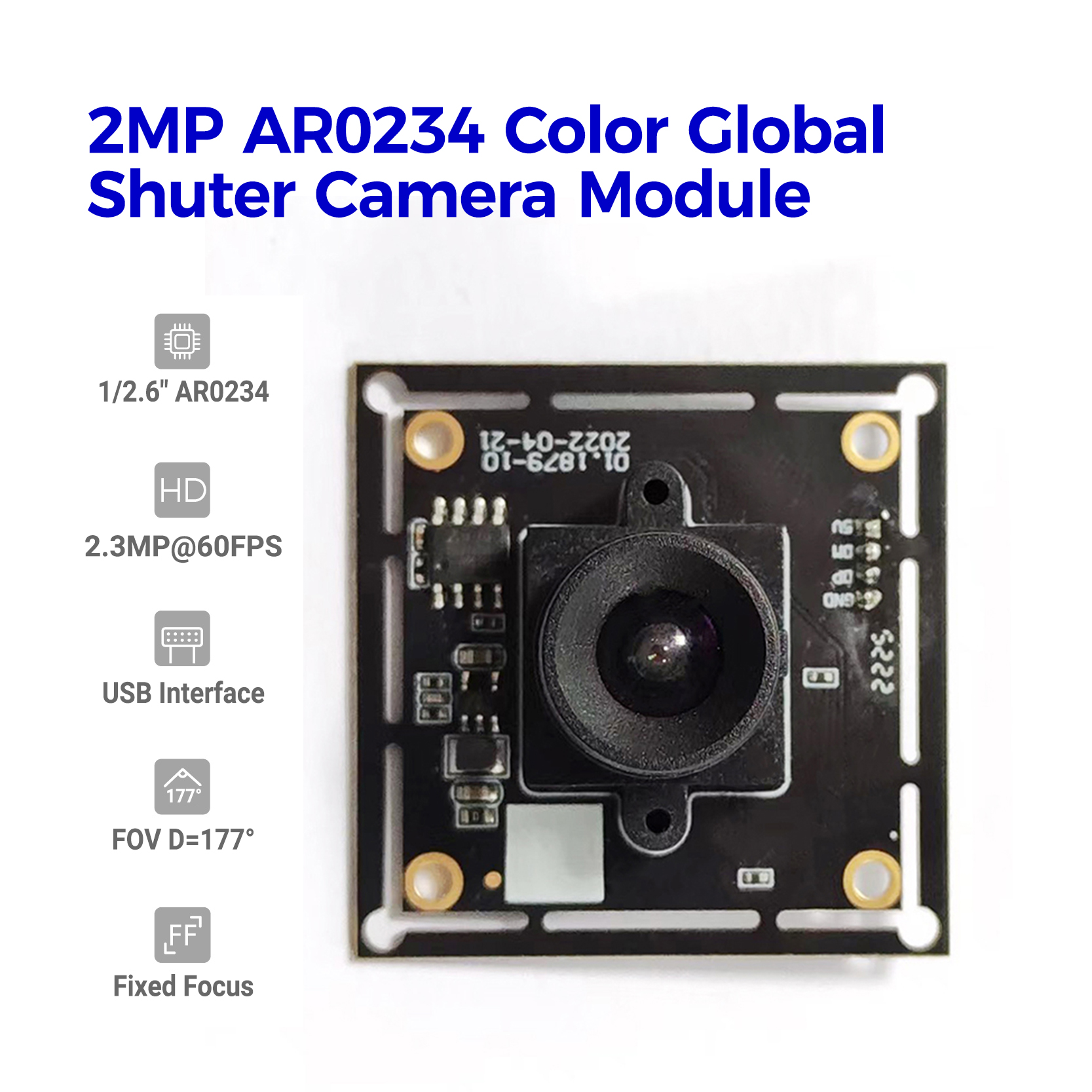

1080P 60fps AR0234 Global Shutter Color Camera Module
1080P 60FPS Global Shutter Color 1/2.6" Onsemi AR0234 Full HD 60FPS High Frame Rate USB2.0 Camera Module
Description:
Hampo 003-1879 is a type of full HD (FHD) Global Shutter USB color camera module, particularly designed to capture fast-moving objects with high image quality. The usb camera adopt a 177degree wide view of angle lens.This Global shutter USB camera features 1/2.6" AR0234 CMOS Image Sensor with pixel size of 3.0µm x 3.0µm and a dedicated high-performance Digital Signal Processor (DSP), is our unique camera module with color global exposure using AR0234 sensor, that performs all the Auto functions (Auto White Balance, Auto Exposure control). This global shutter camera captures images at a high frame rate, which helps to minimize frame-to-frame distortion and reduce motion blur while capturing fast-moving objects to produce smoother images with greater scene details.
Feature:
AR0234 High Quality Image Sensor: This FHD camera module is based on 1/2.6" AR0234 CMOS image sensor with a 3-µm pixel size, is our unique camera module with color global exposure using AR0234 sensor, assembled with a no distortion M12 lens without IR pass filter, sensitive to IR.
Global Shutter: Shoot high-speed moving objects in crisp sharp images. Avoid the rolling artifacts to get a much more accurate complete picture than the rolling shutter cameras. Reserved external trigger ports, support trigger via external signal.The high-performance global shutter camera module can capture images at high frame rate, FHD (1080p) up to 120 fps. Its global shutter and high frame rate capabilities help to minimize frame-to-frame distortion and reduce motion artifacts while capturing.
Full HD Resolution: 2.3MP @120fps;
Wide Angle Lens: The 1080p global shutter camera module has a wide view of angle,the d=177 degree.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: The sensor's excellent low-light sensitivity and the low distortion lens allow it to perform better in any application that needs gesture and eye tracking, iris and physiognomy recognition, depth and motion detection.
SPECS
| Camera | |
| Pixel | 2.3 Mega Pixel |
| Sensor | 1/2.6’’ On Semiconductor AR0234 Sensor |
| Frame Rate | 60fps |
| Pixel Size | 3.0μm*3.0μm |
| Output Format | YUY2/MJPG |
| Shutter Type | Global Shutter |
| Chroma | Color image |
| Focus | Fixed focus |
| FOV | D=177° |
| S/N ratio | 38dB |
| Dynamic range | TBD |
| Responsivity | 56 Ke-/luxsec |
| Interface type | USB2.0 |
| Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition |
| Gamma/White balance/Exposure | |
| Lens | Focal length: 3.6mm |
| FOV: 177° small distortion | |
| Thread Size | M12*P0.5 |
| Working Current | MAX 200mA |
| Voltage | DC 5V |
| Auto Exposure Control | Support |
| Auto White Balance | Support |
| Auto Gain Control | Support |
| Interface | USB2.0 |
| Operating Temp | -4°F~158°F (-20°C~+70°C) |
| PCB Size | 32*32MM(Hole pitch compatible with 28x28mm) |
| Cable Length | Default 1.5M |
| TTL | 22.2MM |
| Support OS | Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver |
Application
Security Monitor, Industrial Machine, Self-service Cell Phone, ATM, AIO, Access Control, Airport Security Checking, Drone, Smart Medical Biometrics, Human-computer Interaction,Industrial Automation
