GC2093 2MP IR-Cut Day&Night vision USB Camera Module
Product Description
Hampo 2672 2MP HD camera module offers excellent imaging capabilities with infrared functionality, allowing it to capture high-quality footage even in low-light conditions. With a capture frame rate of 60fps, the module ensures smooth video playback and minimizes motion blur, making it ideal for applications requiring high-speed performance. The camera is equipped with the GC2093 sensor, which provides clear and detailed images, enhancing the overall user experience in surveillance, monitoring, and other visual detection systems.
Additionally, the module supports both H.264 and H.265 video compression formats, enabling efficient data encoding and reducing storage requirements. H.265, in particular, offers superior compression rates while maintaining high image quality, which is crucial for environments with limited bandwidth or storage. This versatility in output formats makes the camera module adaptable to various systems, offering seamless integration and flexible deployment for a wide range of uses.

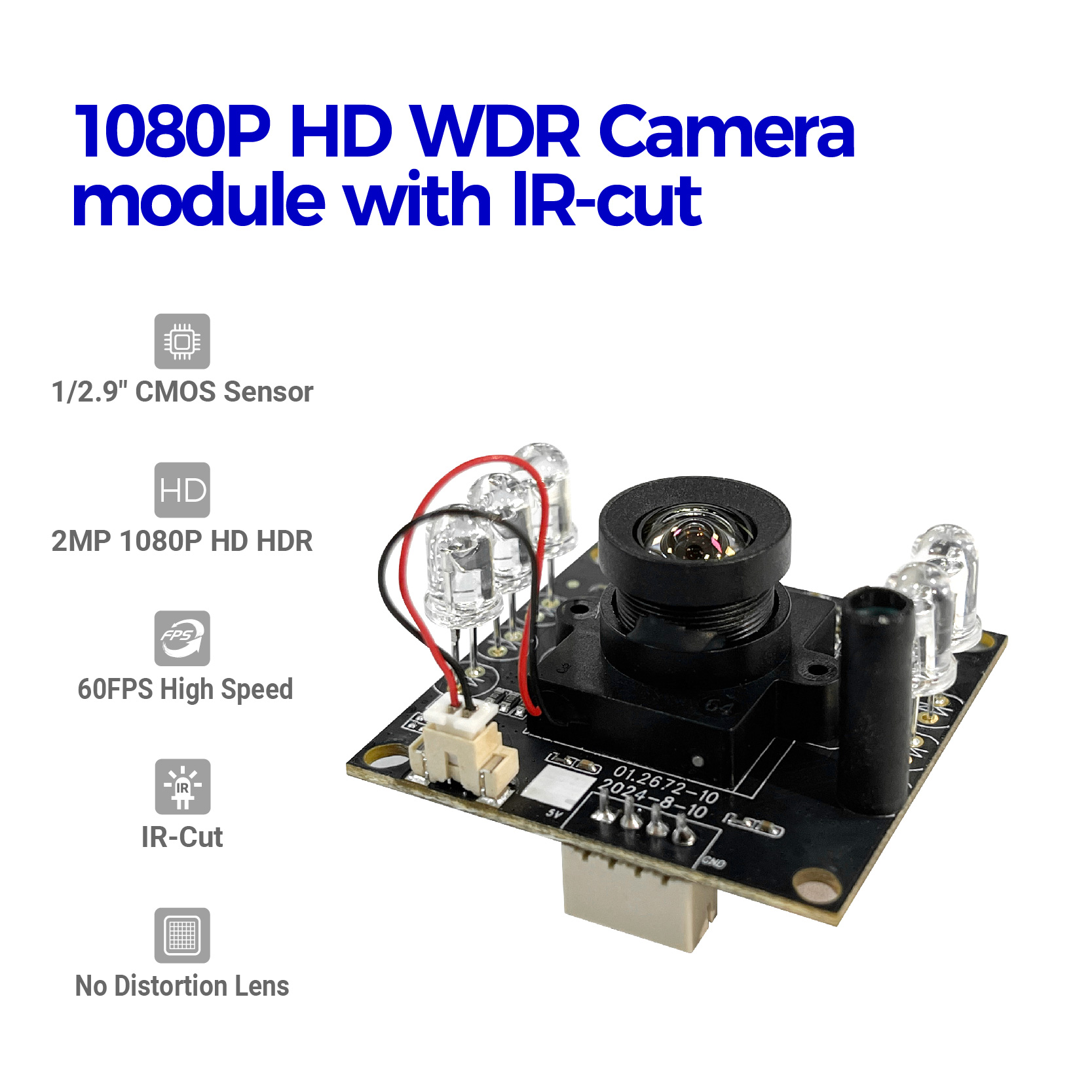

Key Features
1080P HD: The 1080p HD camera module is equipped with high resolution, clear and delicate picture quality, capable of shooting HD videos and high-quality photos.
60fps frame rate: Record at 60 frames per second to ensure smooth motion in video clips.

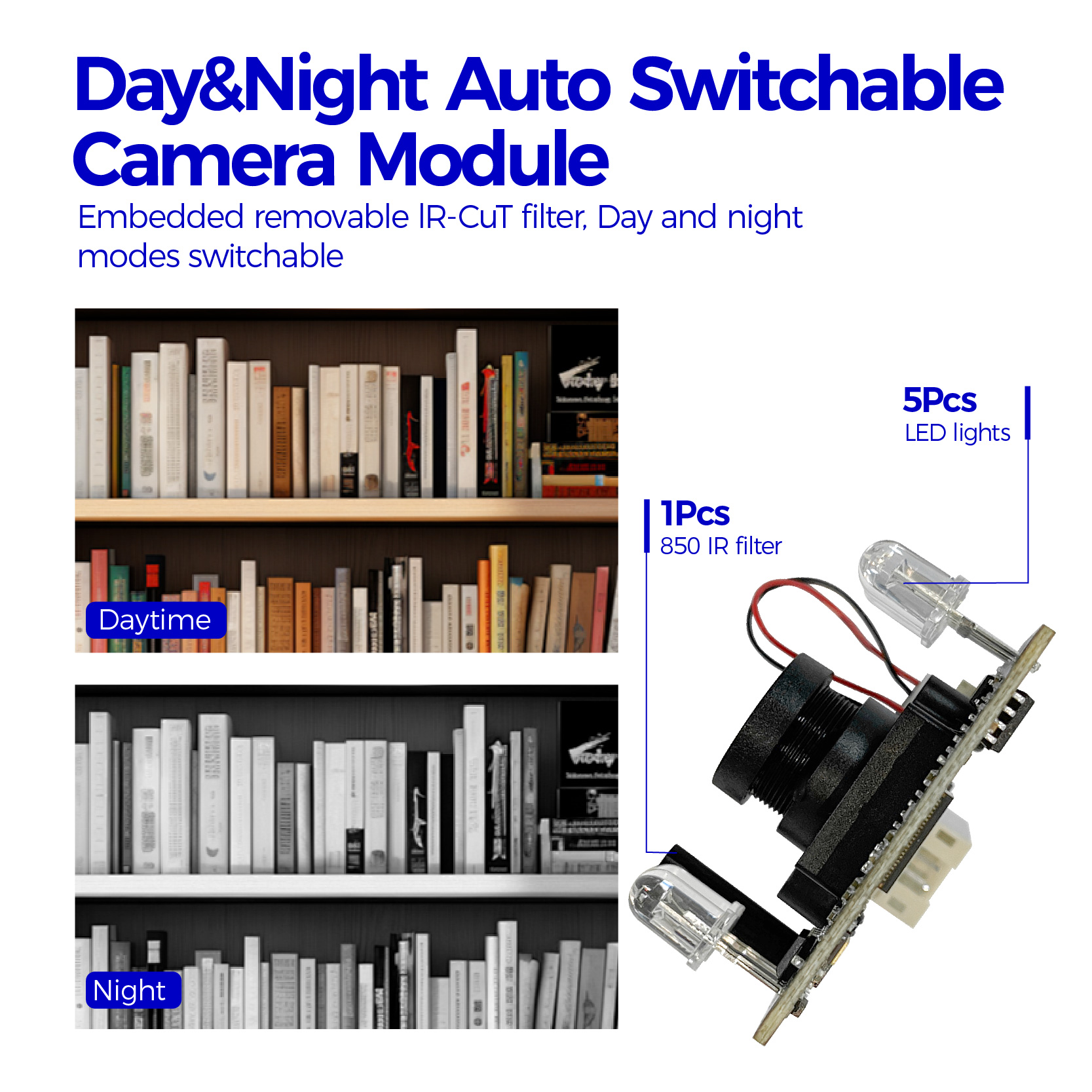

IR-Cut: The camera module can automatically enable infrared illumination in low-light or no-light environments to ensure that the subject is clearly visible. Through the infrared light source, it can capture images that are invisible to the human eye, providing high image quality and stability.
Support H.264/H.265: The camera module supports H.264 and H.265 output, which can provide efficient video compression technology, achieve better image quality and compression ratio, and reduce file size and bandwidth usage at the same image quality. This makes the camera module perform well in real-time video transmission, video surveillance, and streaming applications, especially in situations where bandwidth is limited or storage space is tight, it can provide higher quality video streaming, reduce delays and freezes.
USB connection: Easily connect to computers and other devices through the USB interface, which is convenient for direct integration into various systems.
Plug and Play: Plug and Play function, no need to install additional drivers.

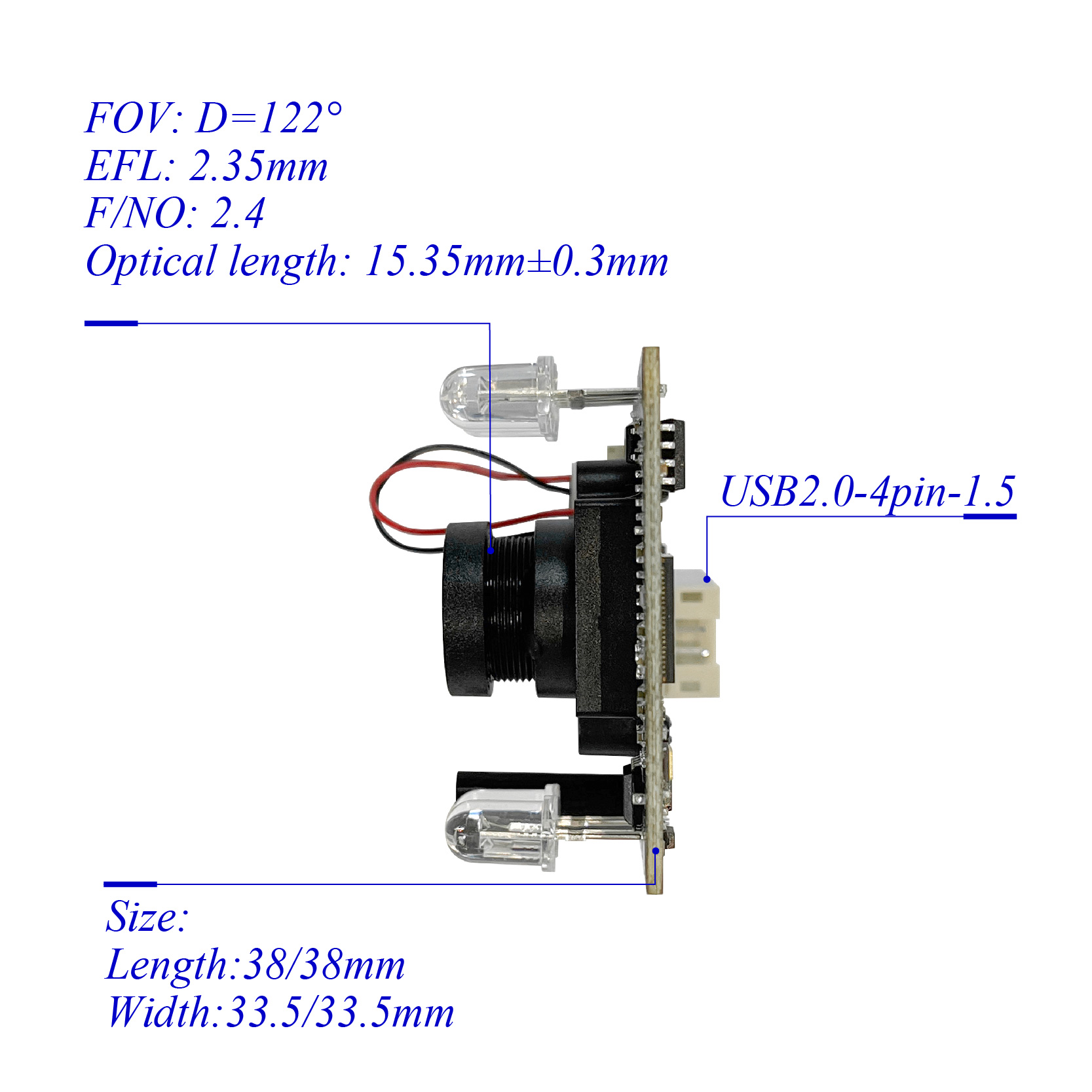

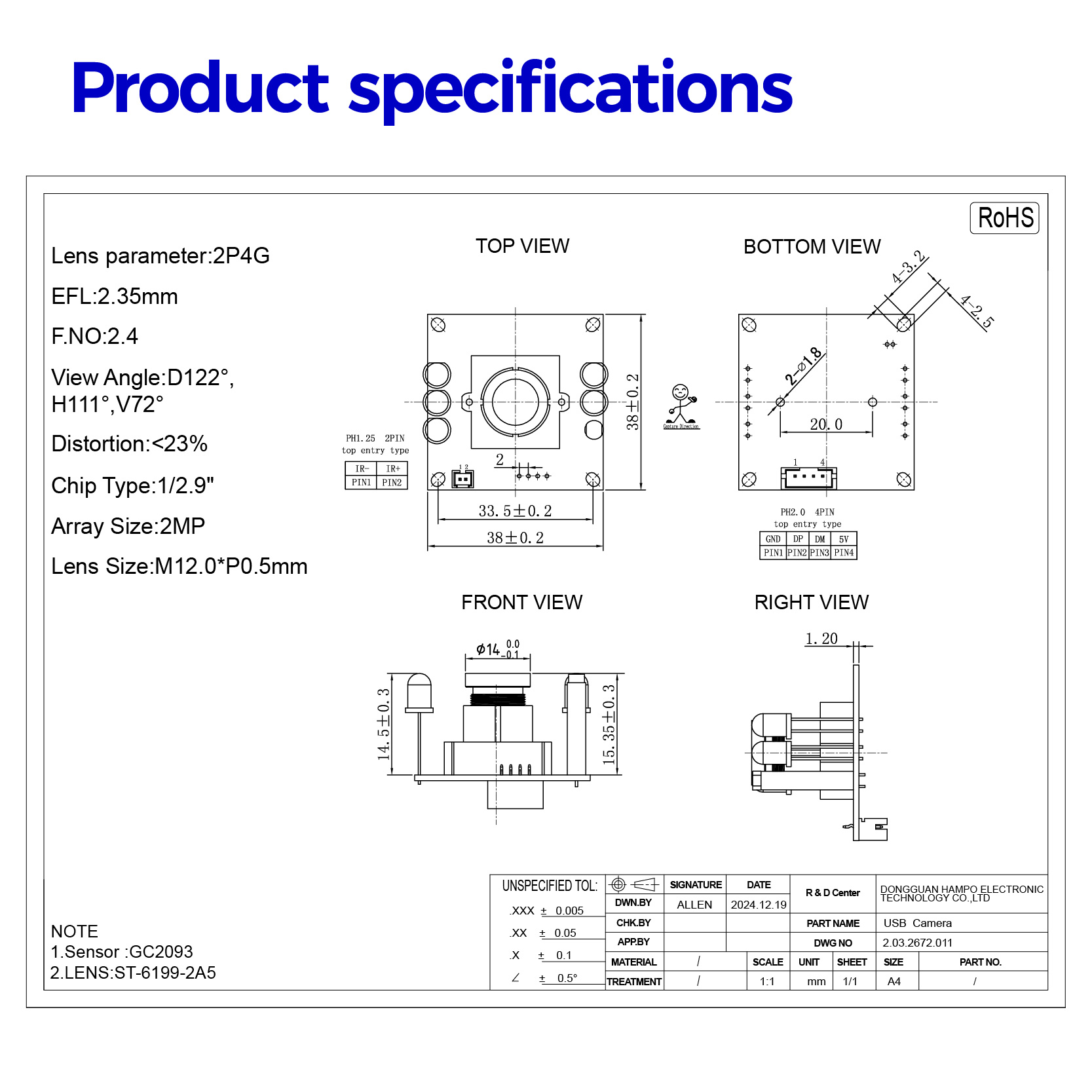

Specification
| Brand | Hampo |
| Model | 2672 |
| MaxResolution | 1920×1080 |
| SensorSize | 1/2.9″ |
| Pixel Size | 2.8μm*2.8μm |
| FOV | D=122° |
| Frame Rate | 60fps |
| Focus Type | FF/AF |
| WDR | 85DB |
| Output Format | H.265/H.264/MJPEG/YUV2 |
| Interface | USB |
| System Compatibility | Android/WindowsXP/7/8/10/11/Linux |
Applications
Security monitoring: The infrared function of this camera module enables the camera to provide clear images at night or in low-light environments, ensuring 24-hour monitoring without blind spots. The high frame rate of 60fps ensures smooth capture of dynamic scenes, can accurately record fast-moving objects, reduce image freezes and blur, and facilitate identification of details, helping users achieve efficient and stable security prevention.
Industrial applications: In the industrial field, the infrared function of Hampo 2672 enables the camera to work normally in low-light or completely dark environments, which is particularly suitable for industrial scenes at night or with uneven lighting, such as production workshops and warehouses, to ensure full-time monitoring and visualization of the production process. The high frame rate of 60fps ensures that fast-moving equipment or materials can be captured, reducing image blur and frame loss, providing clear images, and facilitating the detection of product defects, analysis of production processes, and quality control.
UAV application: The infrared function of Hampo2672 enables UAVs to perform high-quality monitoring and shooting in low-light or nighttime conditions. The high frame rate of 60fps ensures smooth capture of dynamic images, and can stably shoot fast-moving targets or environmental changes, reducing image freezes and blurs. It enables UAVs to accurately identify ground targets, detect obstacles, or conduct detailed geographic surveys.
Smart Home: In the field of smart home, its infrared function enables the camera to take clear pictures at night or in low light environments, ensuring all-weather home security monitoring, whether it is home security, baby monitoring or elderly care, it can provide visual monitoring without blind spots. High resolution ensures clear presentation of details, making it easier for users to identify facial features, object locations or subtle changes, and improving the accuracy of monitoring.
Company Profile
Dongguan Hampo Electronic Technology Co,. Ltd is a manufacturing company based in Dongguan, Guangdong, China. We design, develop and manufacture Serial USB cameras modules, MIPI camera modules and DVP modules, finished cameras, other specialty cameras, OID device includes talking pen and smartpen.
Hampo has three production plants covering 13,000m2 with up to 500 employees.
Hampo is heavily invested in R&D, with some of the most experienced engineers. We work closely with clients in different industries, to develop new and cutting-edge camera solutions, using the latest technologies. Technical support is readily available to assist in trouble shooting.
In addition, Hampo offers OEM/ODM services, as well as PCB manufacturing services, to help better serve our client's specific needs.
Hampo is proud to be a part of this growing field. We invite all innovators, for large or small projects, to allow us the opportunity to be a part of their journey.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(25.00%),Eastern Asia(25.00%),Western Europe(10.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Camera Module/PC Camera/Smart Pen
4. why should you buy from us not from other suppliers?
We are a manufacturer and specialized in research, design and develop camera module, camera, OID devices. Our workshop covers 13,000m2. We have up to 500 staff includes engineering team, QC team, sales team, manufacturing team etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
Language Spoken:English,Chinese
