OV5645 5 megapixel medical scan code fpc MIPI Camera Module
High definition MIPI Camera Module CMOS OV5645 5 megapixel medical scan code fpc Camera Module
HAMPO-E7MA-OV5645 V2.1 is a 5megapixel MIPI interface camera module, adopting a 5-megapixel OV5645 CMOS image sensor,built on OmniVision's 1.4-micron OmniBSI™ pixel architecture, the OV5645 offers high performance 5-megapixel photography and 720p HD video at 60 frames per second (FPS) and 1080p HD video at 30 FPS with complete user control over formatting and output data transfer. The sensor's 720p HD video is captured in full field-of-view with 2 x 2 binning, which doubles the sensitivity and improves the signal-to-noise ratio (SNR). A unique post-binning, re-sampling filter function removes zigzag artifacts around slant edges and minimizes spatial artifacts to deliver even sharper, crisper color images.
Specification
|
Camera Module No.
|
HAMPO-E7MA-OV5645 V2.1
|
|
Resolution
|
5MP
|
|
Image Sensor
|
OV5645
|
|
Sensor Size
|
1/4"
|
|
Pixel Size
|
1.4 um x 1.4 um
|
|
EFL
|
3.29 mm
|
|
F/No.
|
2.8
|
|
Pixel
|
2592 x 1944
|
|
View Angle
|
68.7°(DFOV) 58.1°(HFOV) 45.0°(VFOV)
|
|

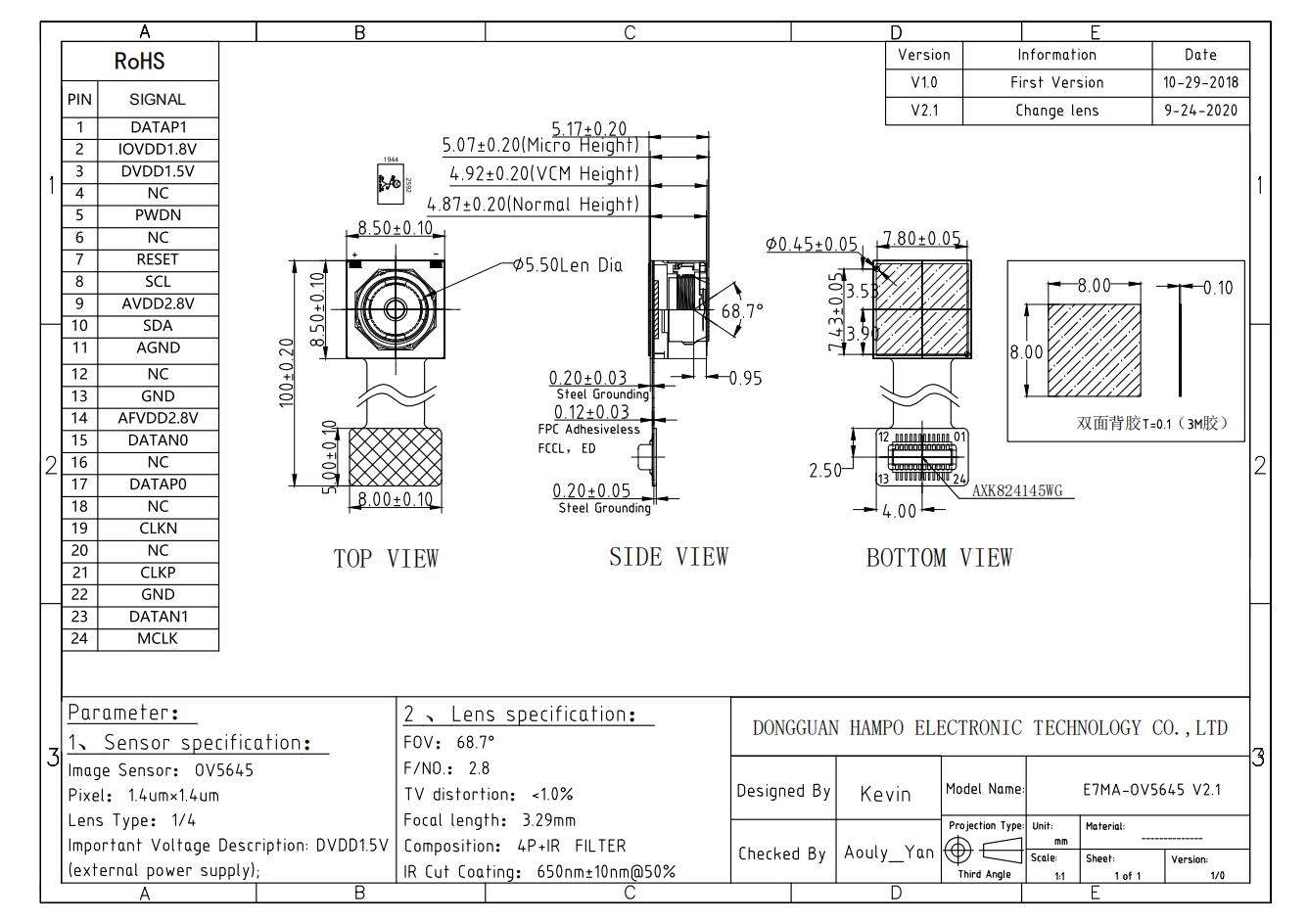

Lens Dimensions
|
8.50 x 8.50 x 5.17mm
|
|
Module Size
|
100.00 x 8.50 mm
|
|
Focusing
|
Auto Focus
|
|
Interface
|
MIPI
|
|
Lens Type
|
650nm IR Filter Lens
|
|
Operating Temperature
|
-30°C to +70°C
|
Key Features
automatic image control functions:
-automaticexposure control (AEC)
-automaticwhite balance (AWB)
-automaticband filter (ABF)
-automatic50/60 Hz luminance detection
-automaticblack level calibration (ABLC)
programmable controls for frame rate,
AEC/AGC 16-zone size/position/weight
control, mirror and flip, cropping,
windowing, and panning
image quality controls: lens correction,
defective pixel canceling
support for output formats: 8-/10-bit raw RGB data
support for video or snapshot operations
