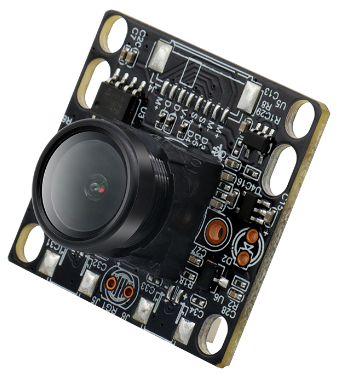

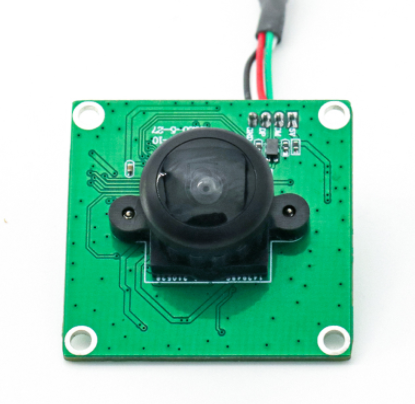

The USB camera module must have the following requirements. They are the most important components which add photo clarity and good working principle. The components are well specified by connecting via CMOS and CCD integrated circuit. It must work according to user requirements and acts as a user-friendly camera option. It will connect with lots of things that add a perfect solution for camera requirements for USB connection.
• Lens
• sensor
• DSP
• PCB
What resolution do you want from a USB Camera?
Resolution is a parameter used to measure the amount of data in a bitmap image, usually expressed as dpi (dot per inch). Simply put, the resolution of the camera refers to the ability of the camera to analyze the image, that is, the number of pixels of the image sensor of the camera. The highest resolution is the size of the camera's ability to resolve images at the highest, the highest number of pixels in the camera. The current 30W pixel CMOS resolution is 640×480, and the resolution of 50W-pixel CMOS is 800×600. The two numbers of resolution represent the units of the number of points in the length and width of a picture. The aspect ratio of a digital picture is usually 4:3.
In practical applications, if the camera is used for web chat or video conferencing, the higher the resolution, the greater the network bandwidth required. Therefore, consumers should pay attention to this aspect, should choose a pixel suitable for their own products according to their needs.

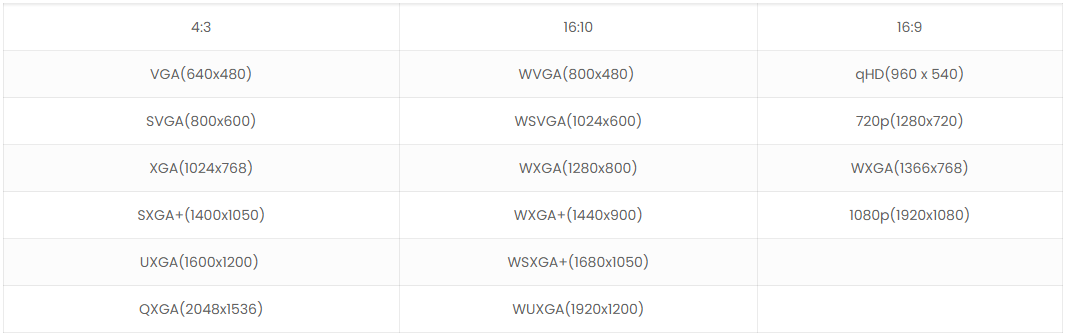

Resolution in comman use
The field of view angle (FOV)?
The FOV angle refers to the range that the lens can cover. (The object will not be covered by the lens when it exceeds this angle.) A camera lens can cover a wide range of scenes, usually expressed by angle. This angle is called the lens FOV. The area covered by the subject through the lens on the focal plane to form a visible image is the field of view of the lens. The FOV should be decided by the application environment, The larger the lens Angle, the wider the field of view, and vice versa.
The EAU of the products
The cost of the price product depends on the specification. The USB camera with small EAU is not suggesting as a customized one. with Constantly demand and personalization requirements like Lens, size, sensor, a customized camera module is your best option.
Camera dimension for your application
The major parameters that have been calculated with the camera module are the dimension, which varies the most for different requirements depending on size and optical format. It has a field of view and focal length for accessing with object dimension calculation. It involves back focal length and includes a perfect lens for format. The optical size of the lens must fit your application and depend on a conventional one. Diameter varies as per larger sensors and implements with lens covers. It depends on the form of vignetting or dark on the corner of the images.
With hundreds of thousands of camera module applications, module dimensions represent the factor that varies the most. Our engineers have the power to develop the exact dimensions which will work best for your specific project.
We are a USB camera module manufacturer. Please feel free to contact us if you need them!
Post time: Nov-20-2022
