OV2740 2MP Full HD Wide View Angle MIPI Camera Module
OEM OV 2740 2MP Full HD Wide View Angle MIPI Camera Module

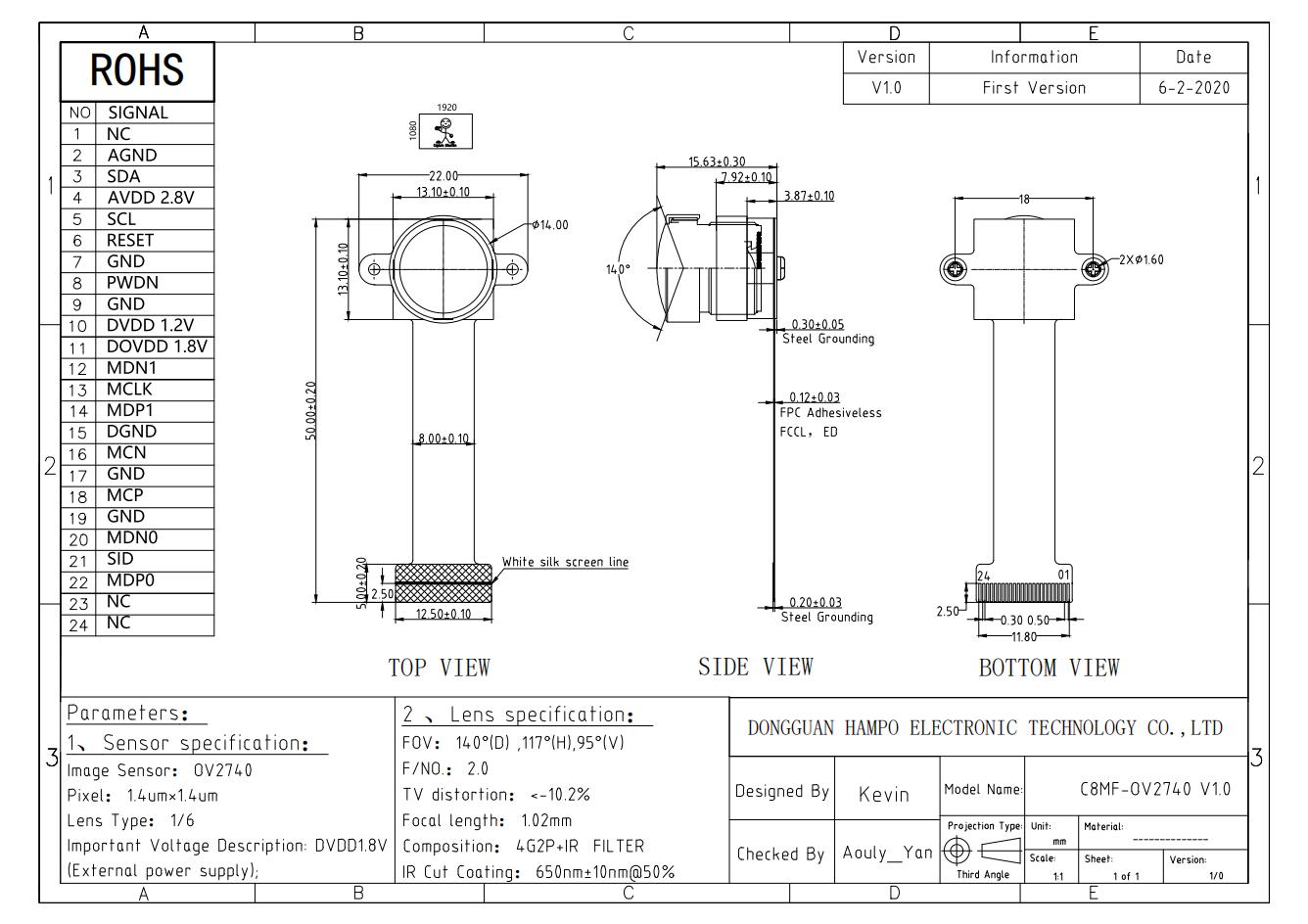

HAMPO-C8MF-OV2740 V1.0 is a 2MP OmniVision OV2740 MIPI Interface M12 Fixed Focus Camera Module.It uses 0.5mm and 1mm Pitch Connectors For FPC/FFC.
APPLICATIONS :Notebook computers, printers, PDAs, digital cameras and other compact devices for interconnecting the main circuit board with the LCD, HDD or other device.
The OV2740 is the only 1080p HD image sensor announced to date that features light-sensing mode (LSM) and ultra-low power mode (ULPM), enabling advanced features such as motion detection or gesture control. Additionally, the sensor is stereo ready with frame synchronization to support a host of depth perception applications.
Specification
|
Camera Module No.
|
HAMPO-C8MF-OV2740 V1.0
|
|
Resolution
|
2MP
|
|
Image Sensor
|
OV2740
|
|
Sensor Type
|
1/6"
|
|
Pixel Size
|
1.4 um x 1.4 um
|
|
EFL
|
1.02 mm
|
|
F.NO
|
2.00
|
|
Pixel
|
1920 x 1080
|
|
View Angle
|
140.0°(DFOV) 117.0°(HFOV) 95.0°(VFOV)
|
|
Lens Dimensions
|
13.10 x 13.10 x 15.63 mm
|
|
Module Size
|
50.00 x 22.00 mm
|
|
Module Type
|
Fixed Focus
|
|
Interface
|
MIPI
|
|
Auto Focus VCM Driver IC
|
None
|
|
Operating Temperature
|
-30°C to +85°C
|
|
Mating Connector
|
FH12-24S-0.5SH
|
Key Features
up to 2-lane MIPI serial output interface (supports maximum speed up to 1000 Mbps/lane)
embedded 4 kilobits of one-time programmable (OTP) memory for customer use
add staggered HDR raw data output
interleave row high dynamic range (iHDR) output
programmable I/O drive capability
power saving (PSV) mode
support for LENC color shading correction
