OV2710 Low Light Dual Lens Camera Module
UVC OV2710 Cmos Sensor 0.5Lux Low Illumination Camera Binocular Module 1080P USB 3D Depth Infrared Dual Lens Camera Module
Product Description

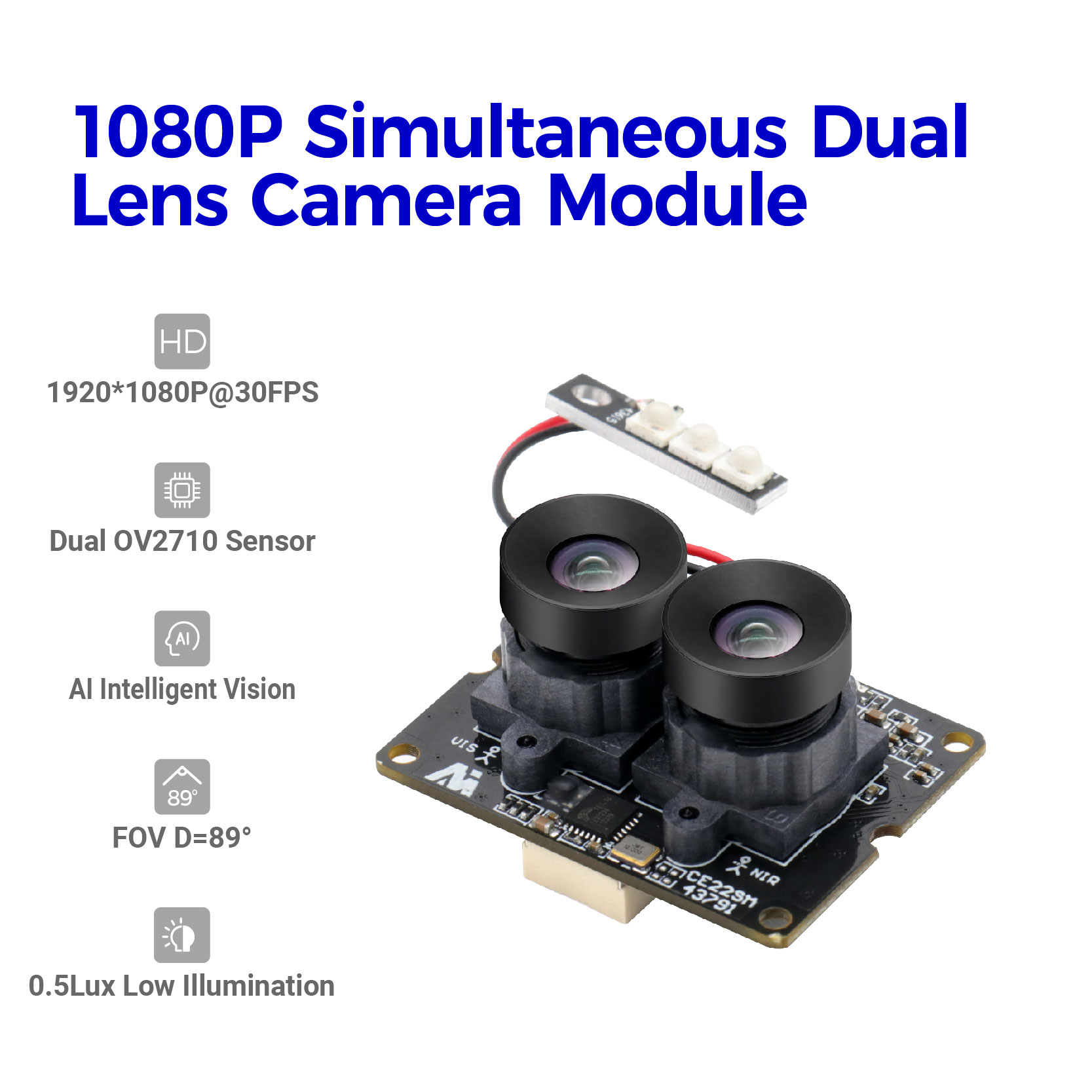

Hampo 003-1018 is a a simultaneous dual lens USB camera module, with dual 1/2.7" CMOS Omnivision OV2710 image sensor, the max resolution is 1920*1080P @30fps for each camera,delivery about 0.5Lux of low illumination. The PCB board size is about 80*16*20(mm).
The outstanding feature for this module is the two camera’s video frame is synchronous, just like human's eyes. Dual-Lens Camera Module, equipped with high-performance AI intelligent vision processor, has powerful AI computing performance, supports various AI frameworks and human detection with high recognition accuracy，widely used for binocular stereo vision secondary development which directly simulates the manner of human eyes observing one scene from two different viewpoints.
Like Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, People Counting & Tracking etc application. Customer could develop their own software and device,integrated with this dual lens camera to capture or view dual image picture or video.The dual lens camera module compatible with Android, Linux and Windows system with UVC and recognized as 2 pcs cameras.
Features:
Synchronized dual lens camera module: This 2MP camera module utilizing the disparity between the two lenses through algorithms, allow MACHINE to see the world as we do. Passive stereo vision designed for environment versatility and featuring long-range capabilities and high-resolution depth perception.
Full HD 1080P Resolution: The camera module adopt two 1/2.7” OV2710 sensor. The max frame rate 1920*1080@ 30fps for each.
Excellent Low Light Performance: Adopting Omnivision OV2710 CMOS sensor, feature at 0.5Lux illumination and high quality image under the low light condition.
Best Universal Compatibility: Dual lens camera module support USB 2.0 OTG,plug&play. USB camera is versatile for Skype, OBS, Zoom, Go To Meeting, Facebook LIVE, and YouTube Live streaming services etc. Widely works with Win XP/Vista/Windows 7/8,Windows 10 Linux.
Wide Application: This mini 80*16*20(mm) camera board can be installed in most hidden and narrow position for access control system, advertisement machine, ATM machin, self-service terminal etc. application.
Specification
| Camera | ||
| Model No. | 003-1018 | |
| Camera | RGB Camera | IR Camera |
| Max Resolution | 1920*1080P | 1920*1080P |
| Sensor | 1/2.7" OV2710 | 1/2.7" OV2710 |
| Frame Rate | MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS YUY2:1920x1080@5FPS;1280x720@10FPS; 800x600@20FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS | MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS YUY2:1920x1080@5FPS;1280x720@10FPS; 800x600@20FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS |
| Pixel Size | 3.0μm*3.0μm | 3.0μm*3.0μm |
| Output Format | YUY2/MJPG | YUY2/MJPG |
| Illumination | 0.5Lux | 0.5Lux |
| Lens | ||
| Focus | Fixed focus | Fixed focus |
| FOV | D=89° H=76° | D=89° H=76° |
| Lens Mount | M12 * P0.5mm | M12 * P0.5mm |
| Focusing Range | 3.3ft (1M) to infinity | 3.3ft (1M) to infinity |
| Power | ||
| Working Current | 200mA | 200mA |
| Voltage | DC 5V | DC 5V |
| Physical | ||
| Interface | USB2.0 | USB2.0 |
| Storage Temperature | -20ºC to +70ºC | -20ºC to +70ºC |
| PCB Size | 80*16*20（mm) | |
| Cable Length | 3.3ft (1M) | 3.3ft (1M) |
| TTL | 15.29MM | 15.29MM |
| Functionality and Compatibility | ||
| Adjustable parameter | Exposure/ White balance | Exposure/ White balance |
| System Compatibility | Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver | Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver |
Here are Some Quick Links and Answers to Frequently Asked Questions.
Check back for updates or contact us with your question.
1. How to order?
We will quote the price to customers after received their requests. After customers confirmed the specification, they will order samples for testing. After inspected all devices , it will be sent to the customer by express.
2. Do you have any MOQ (minimum order)?
Sample order will be supported.
3. What is the payment terms?
T/T bank transfer is accepted ,and 100% balance payment before goods shipment.
4. What is your OEM requirement?
You can choose multiple OEM services includes the pcb layout, update the firmware, color box design, change deceive name, logo label design and so on.
5. How many years have you been established?
We focus on the audio&video products industry over 8 years.
6. How long is the warranty?
We offer 1 year warranty to all of our products.
7. How long is the delivery time?
Normally the sample devices could be delivered within 7 working day , and the bulk order will depend on the quantity .
8.What kind of software support I can get?
Hampo provided lots of tailor-made rugged solutions to customers, and we can also provide SDK for some of projects, software online upgrade , etc.
9.What kind of services can you provide?
There is two services models for your option ,One is OEM service ,which is with customer’s brand based on our off-the-shelf products ;the other is ODM service according to the individual demands ,which included Appearance design ,structure design ,Mold development ,software and hardware development etc.
