OV4689 Fixed Focus Wide-angle 4MP Mipi Cmos Camera Module
OV4689 Sensor Full HD Fixed Focus Wide-angle 4MP Mini Mipi Cmos Camera Module

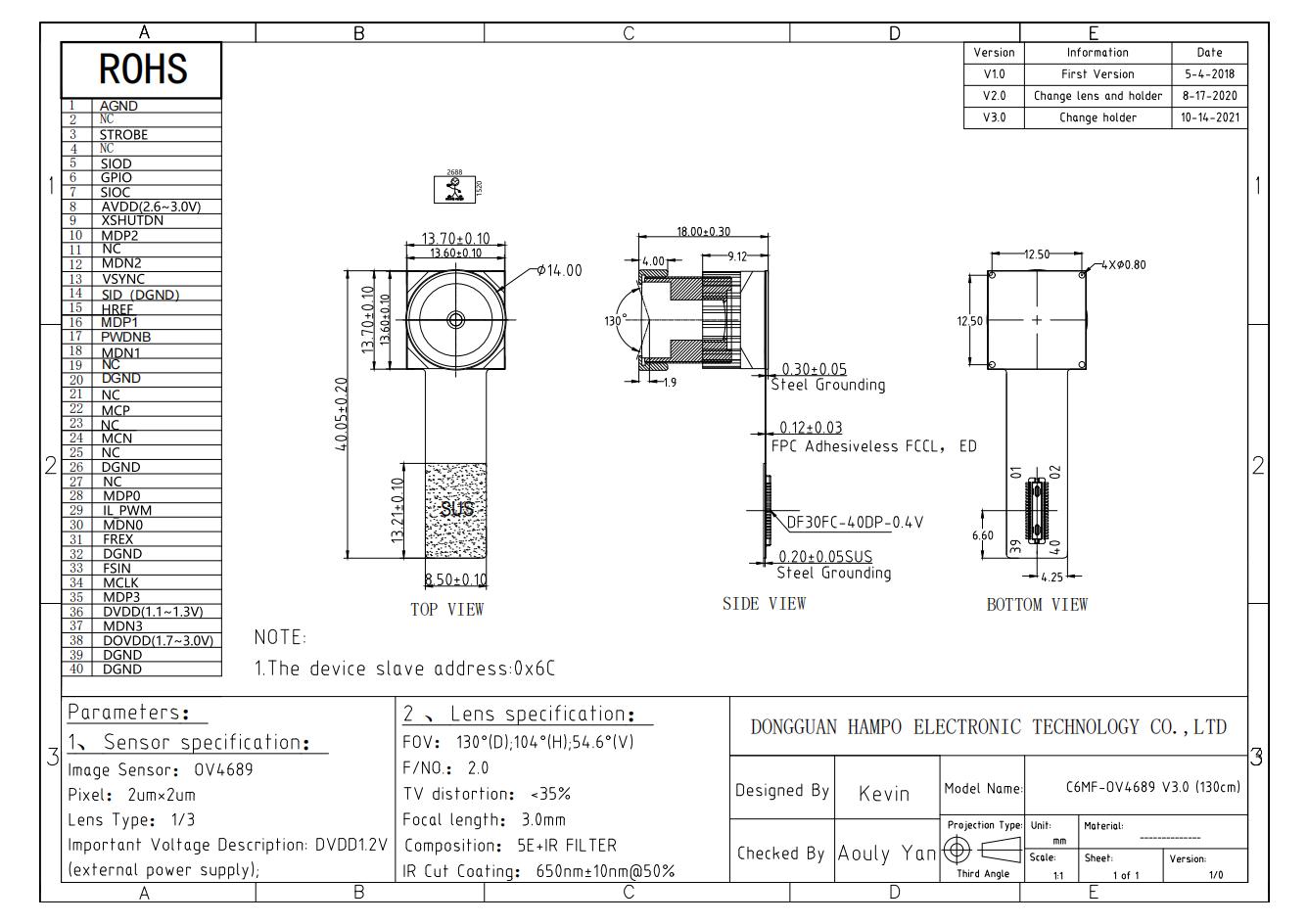

HAMPO-C6MF-OV4689 V3.0 is a4MP OmniVision OV4689 MIPI Interface M12 Fixed Focus Camera Module.It uses 0.4 mm Pitch, 0.9 mm Height, Board-to-Board / Board-to-FPC Connectors.
APPLICATIONS :Cellular phones, PDA's, mobile computers, digital cameras, digital video cameras, and other devices demanding high reliability connections in extremely limited spaces..
Specification
|
Camera Module No.
|
HAMPO-C6MF-OV4689 V3.0
|
|
Resolution
|
4MP
|
|
Image Sensor
|
OV4689
|
|
Sensor Type
|
1/3"
|
|
EFL
|
3.00 mm
|
|
F.NO
|
2.00
|
|
Pixel
|
2688 x 1520
|
|
View Angle
|
130.0°(DFOV) 104.0°(HFOV) 54.6°(VFOV)
|
|
Lens Dimensions
|
13.60 x 13.60 x 18.00 mm
|
|
Module Size
|
40.05 x 13.70 mm
|
|
Module Type
|
Fixed Focus
|
|
Interface
|
MIPI
|
|
Auto Focus VCM Driver IC
|
None
|
|
Operating Temperature
|
-30°C to +85°C
|
|
Mating Connector
|
DF30FC-40DS-0.4V
|
Key Features
*automatic black level calibration (ABLC)
*programmable controls for frame rate, mirror and flip, cropping, and windowing
*static defective pixel canceling
*supports output formats: 10-bit RAW RGB (MIPI)
*supports horizontal and vertical subsampling
*supports images sizes: 4Mpixel, 3Mpixel, EIS1080p, 1080p, EIS720p
*fast mode switching
