High Pixel 4K 1/2.8 inch Sony IMX415 3.2mm No Distortion Lens Low Illumination Autofocus 4K Camera Module
Description:
003-1559 is a type of camera module on the based of 1/2.8” advance CMOS Sony IMX415 sensor real 4K USB web camera module, it has a high frame rate at 25fps on full 4K 3864*2228 of resolution.True and no distortion color image for video conference, beauty equipment, education products , medical equipment etc.
Key Features
8MP Ultra HD Resolution:
4K USB camera module ultra HD webcam module.The max resolution:3864*2228@25fps. Widely use for high levels video system of video conference, medical, education product, beauty equipment etc. MJPG/YUV compression format optional, fast transmission,recorded clear, vivid, and colorful video. Support OTG optional.
High Frame Rate:
This camera module has a high frame rate at 25fps on full 4K 3864*2228 of resolution. Ultra clear and high quality of video image effect, perfect for high-end of medical equipment,beauty equipment, video conferencing and education equipment etc.
Advance Sony Sensor:
The camera adopt a large size 1/2.8” high quality CMOS Sony IMX415 sensor. Better image with less light.
Quick Plug&Play:
Drive-free USB camera module is very easy to use, just need to plug the camera to USB port, no need to download or install any drivers. High speed USB 2.0 USB camera also support OTG protocol(UVC).
SPECS:
| Camera | |
| Model No. | 003-1559 |
| Max Resolution | 3864*2228P |
| Sensor | 1/2.8″ IMX415 |
| Frame Rate | MJPG 25fps@3864*2228 |
| Pixel Size | 1.45μm*1.45μm |
| Output Format | YUY2/MJPG |
| Dynamic Range | 85dB |

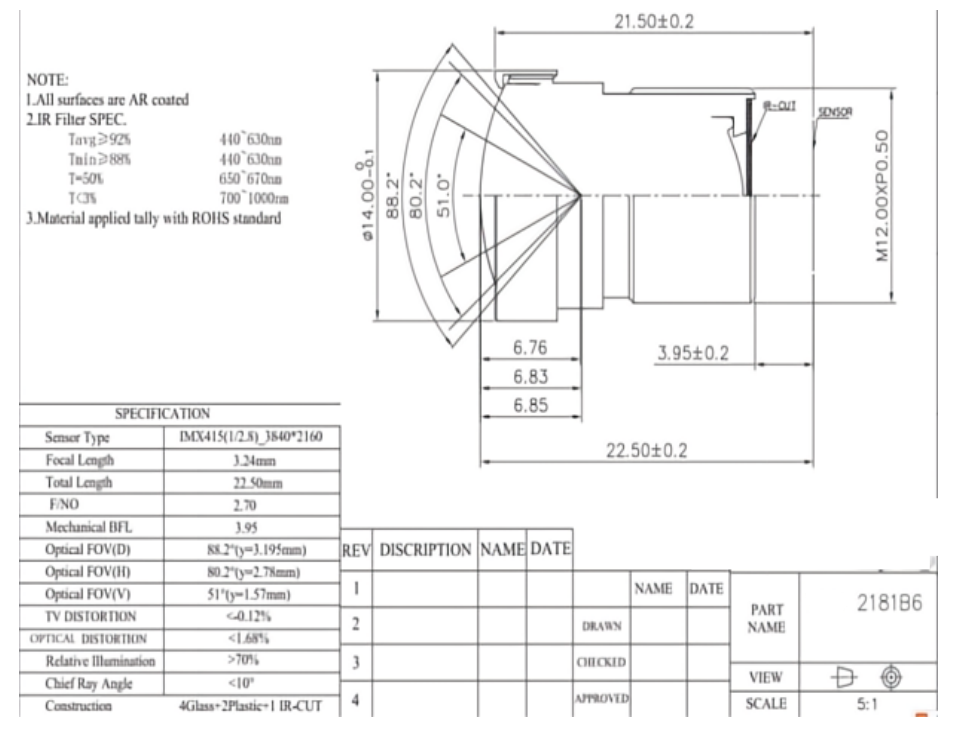

| Lens | |
| Focus | AF/FF |
| FOV | D=88.2° |
| Lens Mount | M12 * P0.5mm |
| Focusing Range | 3.3ft (1M) to infinity |
| Power | |
| Working Current | MAX 300mA |
| Voltage | DC 5V |
| Physical | |
| Interface | USB2.0 |
| Storage Temperature | -20ºC to +70ºC |
| PCB Size | 38mm*38mm,32mm*32mm |
| Cable Length | 3.3ft (1M) |
| TTL | 22.5MM |
| EFL | 3.24MM |
| Functionality and Compatibility | |
| Adjustable parameter | Exposure/ White balance |
| System Compatibility | Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver |
Applications
This camera module can be installed in most hidden and narrow position for All-in-one machine，POS equipment /Credit card machine，Automatic vending machine，ATM，Face Matching，OCR components/OCR Reader，Teaching system，Security system，Automobile data recorder，Attendance machine，Industrial camera，Document Reader/Document scanner，Video，door phone，Medical and Beauty instrument，Video conference.
