Sony IMX415 4k@30fps high definition auto focus USB Camera Module
High Pixel 4K 1/2.8 inch Sony IMX415 No Distortion Lens Autofocus USB Camera Module
Description:

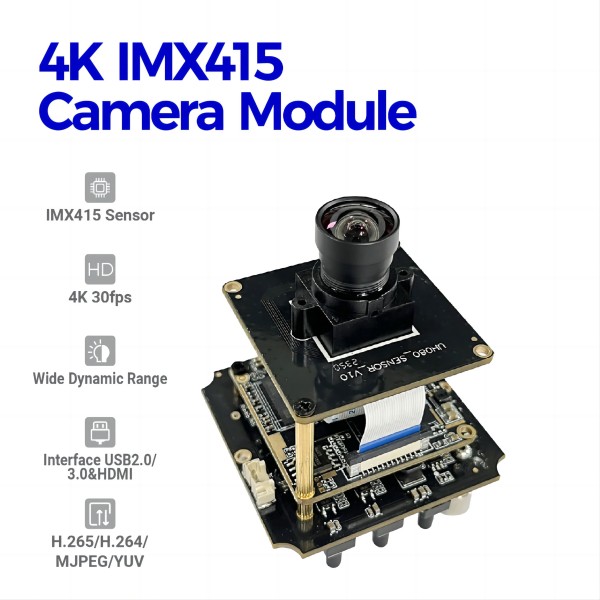

UH080 is a type of camera module on the based of 1/2.8” advance CMOS Sony IMX415 sensor real 4K USB web camera module, it has a high frame rate at 25fps on full 4K 3840*2160 of resolution.True and no distortion color image for video conference, beauty equipment, education products , medical equipment etc.
Key Features
8MP Ultra HD Resolution:
4K USB camera module ultra HD webcam module.The max resolution:3840*2160@30fps. Widely use for high levels video system of video conference, medical, education product, beauty equipment etc. MJPG/YUV/H.265/H.264 compression format optional, fast transmission,recorded clear, vivid, and colorful video. Support OTG optional.
High Frame Rate:
This camera module has a high frame rate at 30fps on full 4K 3840*2160 of resolution. Ultra clear and high quality of video image effect, perfect for high-end of medical equipment,beauty equipment, video conferencing and education equipment etc.
Advance Sony Sensor:
The camera adopt a large size 1/2.8” high quality CMOS Sony IMX415 sensor. Better image with less light.
Quick Plug&Play:
Drive-free USB camera module is very easy to use, just need to plug the camera to USB port, no need to download or install any drivers. High speed USB 2.0 USB camera also support OTG protocol(UVC).
SPECS:
|
Camera
|
|
|
Model No.
|
UH080 |
|
Max Resolution
|
3840*2160P
|
|
Sensor
|
1/2.8" IMX415
|
|
Frame Rate
|
30fps@3840*2160
|
|
Pixel Size
|
1.45μm*1.45μm
|
|
Output Format
|
YUY2/MJPG/H.265/H.264
|
|
Dynamic Range
|
85dB
|
|

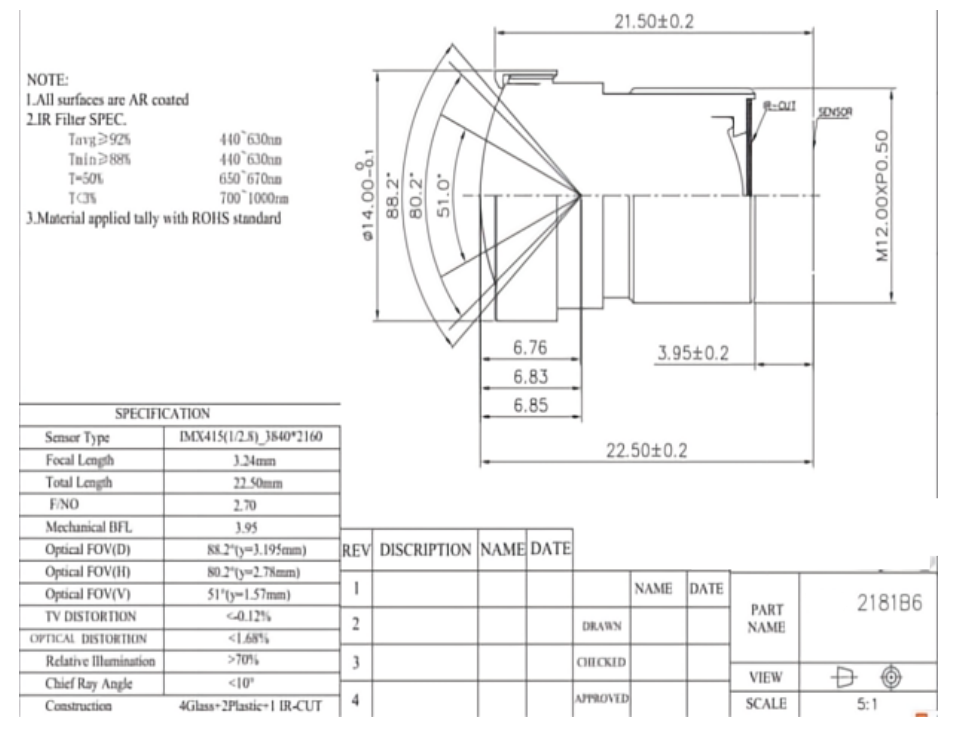

Lens
|
|
|
Focus
|
AF
|
|
FOV
|
D=88.2°
|
|
Lens Mount
|
M12 * P0.5mm
|
|
Focusing Range
|
3.3ft (1M) to infinity
|
|
Power
|
|
|
Working Current
|
MAX 300mA
|
|
Voltage
|
DC 5V
|
|
Physical
|
|
|
Interface
|
USB2.0/USB3.0/HDMI
|
|
Storage Temperature
|
-20ºC to +70ºC
|
|

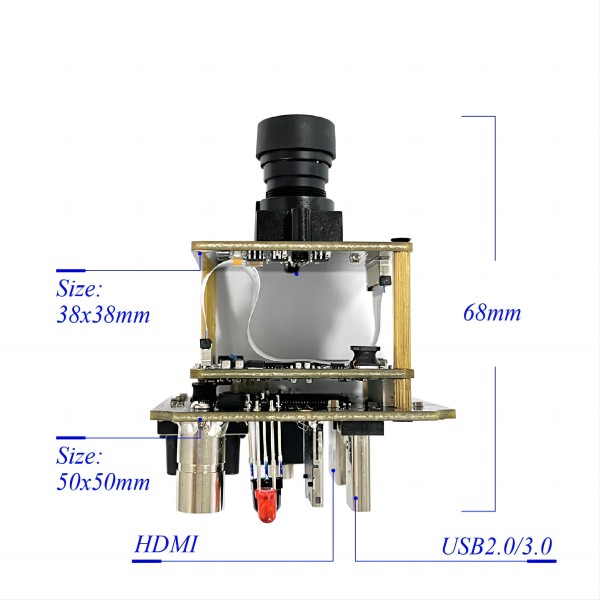

PCB Size
|
38mm*38mm,55mm*55mm
|
|
Cable Length
|
3.3ft (1M)
|
|
TTL
|
22.5MM
|
|
EFL
|
3.24MM
|
|
Functionality and Compatibility
|
|
|
Adjustable parameter
|
Exposure/ White balance
|
|
System Compatibility
|
Windows XP(SP2,SP3),Vista ,7,8,10,Linux or OS with UVC driver
|
Applications
