Wide Angle Jx-H62 HD 720p USB Camera Module

Hampo 003-0751 is a mini camera module with 60*8mm specification,adopting 1/4″ JX-H62 Cmos image sensor, the high frame rate is 30fps at 1280*720P.The FOV for default lens on this module is D=160°, H=120°, will different according to the choosing lens.

Support: Trade, Wholesale

Factory Certifications:ISO9001/ISO14001

Product Certifications: CE/ROHS/FCC

QC Team: 50 members, 100% inspection before shipment

Custimized time: 7 days

Samples time: 3 days

Send email to us

Product Detail

Product Tags

Description:

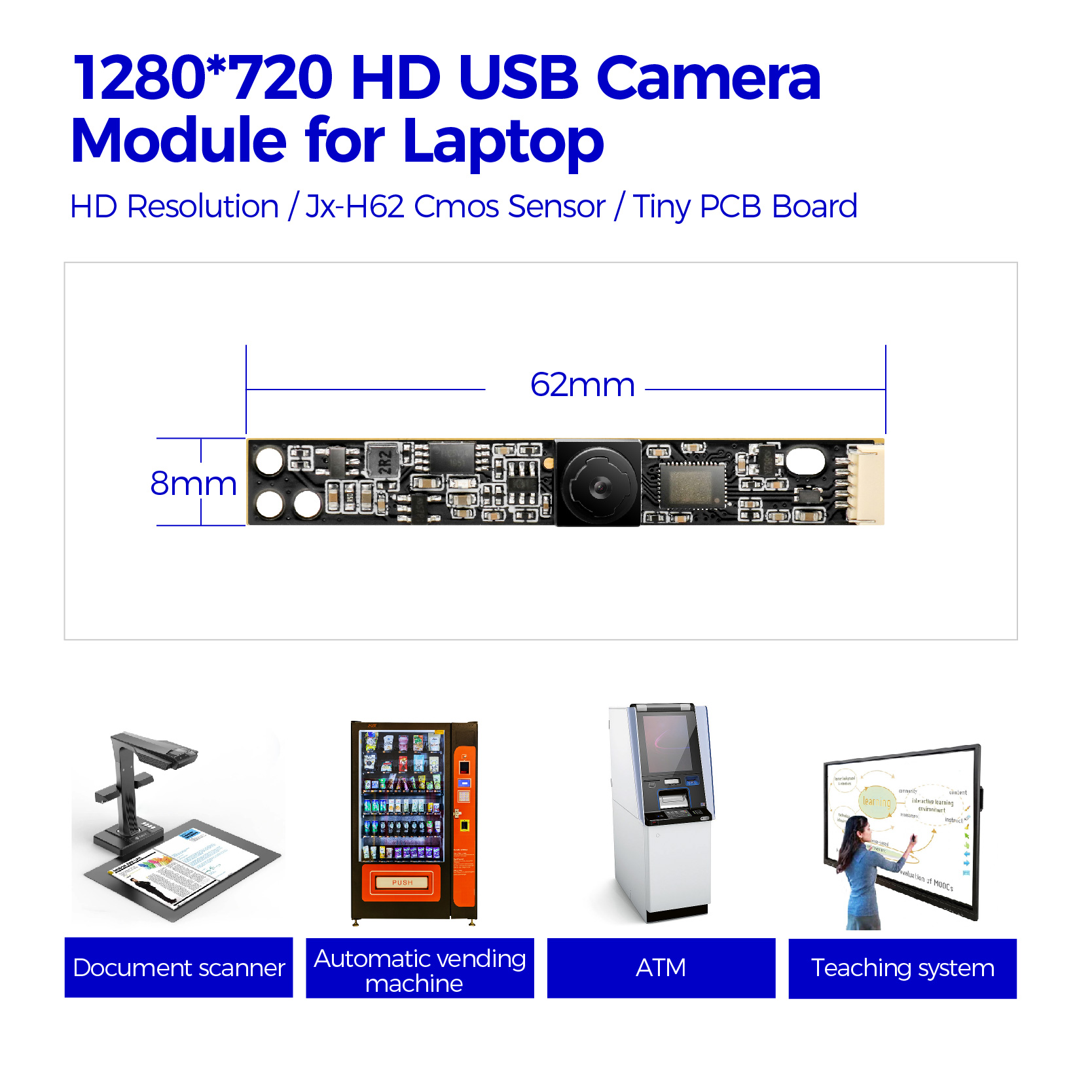

Hampo 003-0751 is a mini camera module with 60*8mm specification,adopting 1/4" JX-H62 Cmos image sensor, the high frame rate is 30fps at 1280*720P.The ultra tiny PCB size make it perfect for the embedded solution which require a narrow board such as the application in all-in-one machine, advertising machines, automatic vending machine,industrial&medical equipment,robot project,teaching system,automobile data recorder,endoscope,and laptop camera etc. The FOV for default lens on this module is D=160°, H=120°, will different according to the choosing lens.

Features

Wide View of Angle: The 1megapixel camera module with a ultra wide view of angle, D=160°, H=120° .

Cost Efficient: This camera adopts the 1MP JXH62 Color COMS sensor, which cuts costs and gets decent image quality.

Frame Rates: MJPG 30fps@1280 x 720/640 x 480/320 x 240; YUY2 10fps@1280 x 720; 30fps@640 x 480/320 x 240.

Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.

Applications: This tiny 60mmx8mm camera board can be installed in most hidden and narrow position for all-in-one machine, advertising machines, automatic vending machine,industrial&medical equipment,robot project,teaching system,automobile data recorder,endoscope,and laptop camera etc.

Specifications:

Items	Parameters
SENSOR	JX-H62
Lens Size	1/4"
Maximum Pixels	1 mp
Maximum Effective Resolution	1296(H)*732(V)
Data Format	YUY2/MJPG
Pixel Size	3.0um*3.0um
Dynamic Range	TBD db
Lens	FOV :D=56°
	Optical length :5.3MM
	lens construction:PC(BLACK)
	mount :M7
Focusing	Fixed focus
Frame Rate	30fps
Auto Control	Saturation,Contrast, Acutance,White balance,Exposure
Audio	/
Voltage	DC 5V
Working Current	MAX 100mA
USB Connector	USB2.0
Storage Temperature	-20ºC to +70ºC
Working Temperature	Change with environmental temperature
System Compatibility	1,Windows XP(SP2,SP3),Vista ,7,8,10
System Compatibility	2,Linux or OS with UVC driver
